NB7PCGM-series
The NB7PCGM series from Nicho Machines consists of two high-performance single-sided edge banding machines: NB7PCGM-PC and NB7PCGM-PCL.
The series is designed for modern wood and furniture manufacturers who require flexibility, precision, and efficiency — whether in small-batch production or integrated high-volume lines.
Both machines feature dual gluing units, PC control with intelligent software, and are built for fast glue color changes, consistent quality, and easy operation. The choice between the two models ensures the right balance between simplicity and full automation.
The two models have been carefully selected to cover different production needs:
- NB7PCGM-PCL (High-Speed Line with Return System) – advanced high-capacity model for industrial environments where speed, automation, and zero-setup operation are essential.
- NB7PCGM-PC (Single-sided Machine) – robust, top-quality model for manufacturers needing flexible and precise edge banding with dual glue units.
Five advantages of the NB7PCGM series
- Dual gluing units for fast color changes
- PC control with intelligent, user-friendly software
- High precision edge processing with minimal waste
- 3 years of warranty as standard
- Prepared for integration in automated production lines
Exterior
- Sturdy steel construction
- Compact layout optimized for operator access
- Wide V-belt pressure for stability and precision
- Optional return system with floating air table (PCL model)
Operation and control
- PC-controlled automation with intelligent interface
- QR code scanning for zero-setup operation
- Full system data tracking via ModBus/TCP
- Error display and maintenance notifications
- Easy glue switching between dark/light without contamination
News and updates
- New automation functions with QR-controlled setup
- Faster glue color switching with dual pre-melt units
- Optional PUR gluing system for advanced applications
- Ready for integration in Industry 4.0 and ERP systems
NB7PCGM-PCL High-Speed Edgebanding Line
Premium
Selected standard equipment and features:
- PC control with QR/Barcode scanning and ModBus/TCP communication
- Dual pre-melt glue tanks (PUR optional)
- Automatic tool adjustment and 8-tape changer
- Advanced edge processing with dual trimming, scraping & buffing units
- Return conveyor with air-floating table for efficient handling
- Compact pressure and assistance rollers for narrow edge banding
- Panel pre-heating stations for improved adhesion
- Pre-milling with diamond cutters for optimal edge preparation
- Riepe spraying units (release agent and cleaning stations)
- Corner rounding station with 4 motors for all edges and corners
- Oscillating buffing units (two sets for different glue colors)
- Nesting kit for panels with drillings and routings
- 25 kg glue hopper with automatic refill system
- Track speed: 18/22/26 m/min (22 m/min with corner trim)
- Panel thickness: 9–60 mm
- Minimum panel size: 120 × 80 mm (200 × 80 mm with corner trim)
- Edge tape: 0.4–3 mm (width 15–65 mm)
- Dust outlets: 8 × 125 mm dia
- Weight: 6110 kg
- Dimensions: 11,200 × 1450 × 1650 mm
- Integrated safety system (CE approved)
- 3 years warrng and scraping units (dual setup for fast change)
Price from: 85.014€
Contact for quote

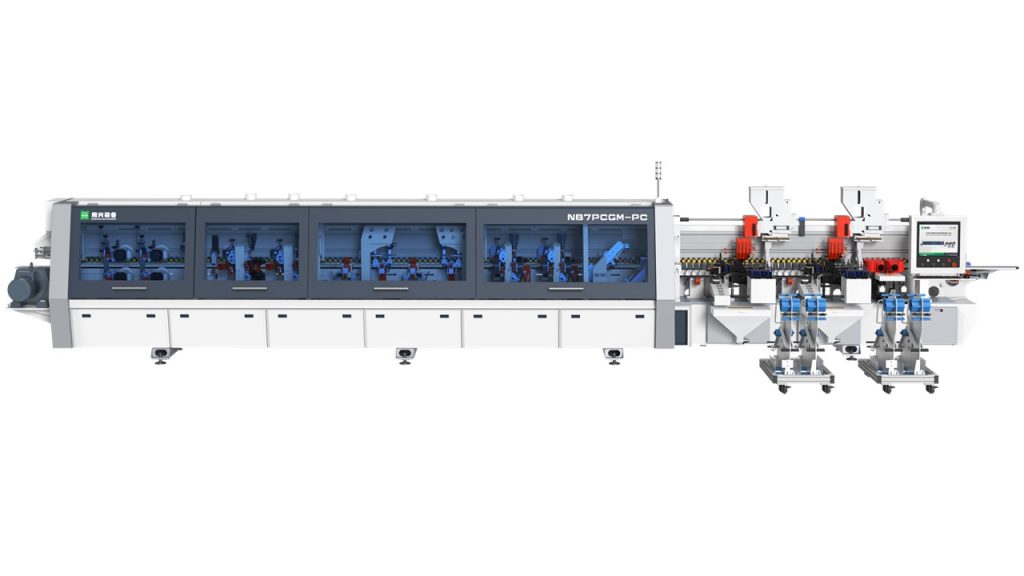

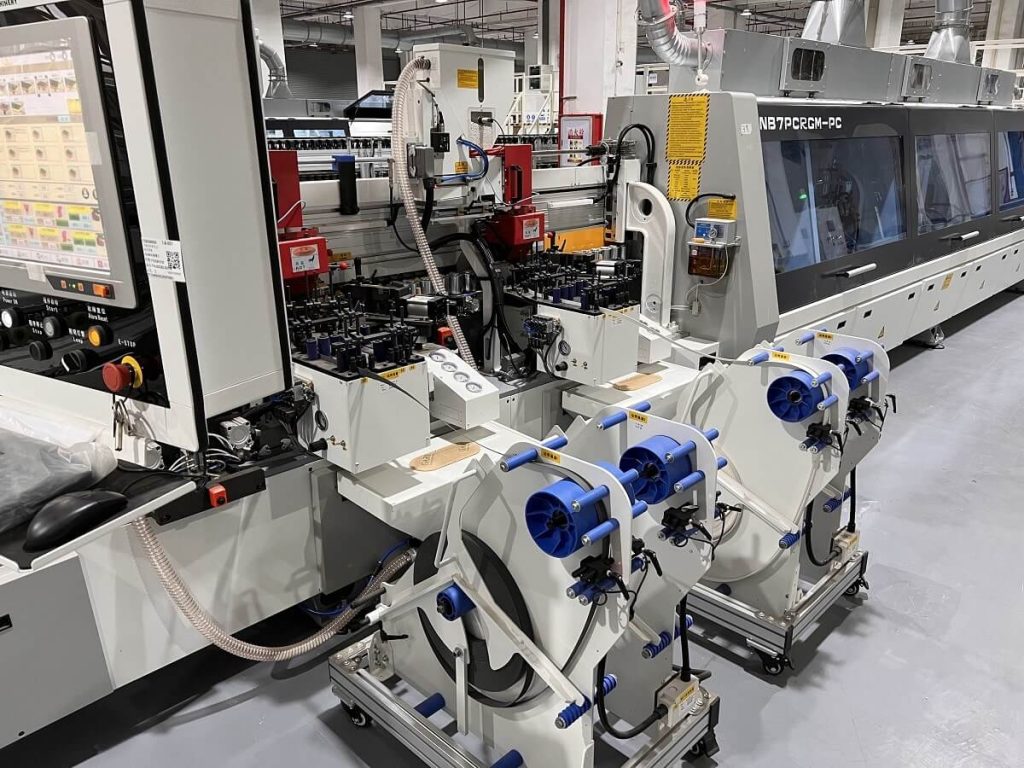

NB7PCGM-PC Single-sided Edge Banding Machine
Standardmodel
Selected standard equipment and features:
- PC control with intelligent and user-friendly software
- 2 pre-melt gluing units for fast glue color change
- Top pressure V-belt for stability
- Automatic edge feed and high processing precision
- 8-position tape cassette for quick tape change
- Panel pre-heating stations for better bonding
- Pre-milling with diamond cutters for clean panel edges
- Riepe spraying units for release and cleaning
- Fine trimming and scraping units (dual setup for fast change)
- Corner rounding unit (optional, depending on setup)
- Oscillating buffing units for a cleaner finish
- Track speed: 18/22/26 m/min
- Panel thickness: 9–60 mm
- Minimum panel size: 120 × 80 mm
- Edge tape: 0.4–3 mm (width 15–65 mm)
- Dust outlets: 8 × 125 mm dia
- Weight: 6110 kg
- Dimensions: 11,200 × 1450 × 1650 mm
- Integrated safety system (CE approved)
- 3 years warranty
Price from: 85.014€
Contact for quote
FAQ – NB7PCGM-Series
What is the difference between the NB7PCGM-PC and the NB7PCGM-PCL?
The two models differ primarily in drilling capacity, spindle interface, machine size and performance:
B7PCGM-PC: A robust, flexible edgebander equipped with dual glue units, intelligent PC control, and an 8-position tape changer. It is ideal for manufacturers who need precision, fast glue color changes, and reliable operation in daily production.
NB7PCGM-PCL: A fully automated, high-capacity version designed for industrial-scale production. It includes a return conveyor with an air-floating table for continuous processing, automatic tool adjustments, QR/Barcode zero-setup control, and advanced automation features — making it the right choice for high-volume lines where speed and zero downtime are critical.
Which materials can the machines process?
The NB7PCGM-PC and NB7PCGM-PCL are designed for processing a wide range of wood-based panels, including chipboard, MDF, plywood, veneered boards, laminated and lacquered surfaces. With the nesting kit and precise edge control, they also handle pre-drilled and routed panels with ease.
- Particleboard
- MDF
- Veneer panels
- Lacquered or laminated surfaces
- Compact laminate (with correct tool and program selection)
The machines handle panels up to 3100 × 2100 mm and a thickness of up to 50 mm.
Is operation simple?
Yes. Both models are equipped with PC control and an intuitive interface, making setup and operation straightforward. Features like QR/Barcode scanning, automatic tool adjustments, and dual glue units minimize manual work, allowing operators to switch between materials, colors, and tape thicknesses with just a few clicks.
What equipment is included as standard?
Common standard equipment for both models:
- 12 kW main spindle (24,000 rpm)
- Automatic tool changer with 12 positions
- 2 × 7.5 kW vacuum pumps (250 m³/h)
- 2-layer vacuum table with split zones
- Automatic loading and unloading
- Honeywell label printer
- Waste collection and dust chamber
- CE-godkendt sikkerhedssystem med lysgitter
NCG3021L-LL also features:
- 21-bit drill unit and HSK-63F spindle
- 21-bit drill unit and HSK-63F spindle
Are there safety features?
Yes. Both the NB7PCGM-PC and NB7PCGM-PCL are CE-certified and built with integrated safety systems. Protective covers, emergency stop functions, and software-based monitoring ensure operator safety, even in continuous high-speed industrial production.
How is the machine operated in practice?
Panels are placed on the feed track, where the V-belt pressure system ensures stability throughout the process. The pre-milling, gluing, trimming, scraping, and buffing units work in sequence, while the PC control manages settings such as tape thickness, glue color, and track speed. On the PCL model, the return conveyor automatically brings panels back to the operator, enabling continuous high-speed production with minimal manual handling.
Which companies are the target group?
The NB7PCGM series is ideal for furniture manufacturers, woodworking plants, and cabinet producers who demand high-quality edges, fast glue color changes, and efficient workflows.
