Basic: Industrial Robotic Solution
From:
From: 96.515,00 €
To: 116.000,00 €
With NichoMachines’ standard robot, you get a powerful, scalable solution that simplifies automation and drives lasting efficiency – all in one smart package.
Additionally, you receive a user-friendly robot that is easy to program, robust enough for demanding environments, and flexible enough to be adapted to both small and large productions. This solution is ideal for businesses looking to streamline their workflow without a significant investment. The robot is controlled via an intuitive HMI panel and can be quickly put into operation by operators with no programming experience. The system is delivered complete and ready for setup directly on the production floor.
Key Features
- Automate production for improved efficiency.
- Easy control with no advanced programming.
- 60 kg lifting capacity, ideal for palletizing.
- Durable technology for tough environments.
- Scalable for small to large businesses.
- Quick return on investment.
Description

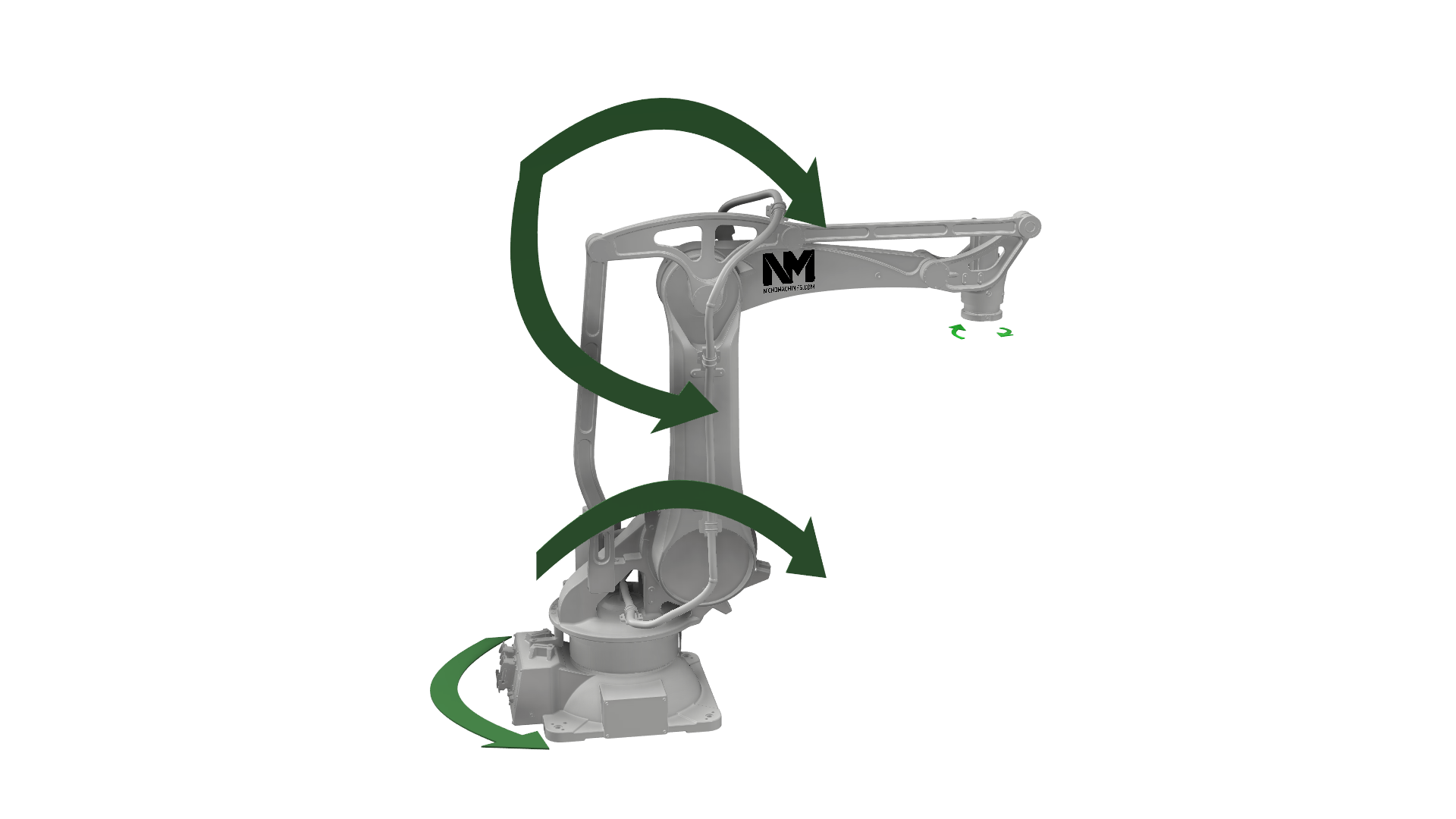

The Estun ER60-2000-PL-FCE robotic arm is designed for palletizing and features fully functional units including 4 axes of movement, a suction cup gripper for lifting items, and a lifting capacity of up to 60 kg. The robot can reach up to 2 meters, making it suitable for handling large items. The work area supports items on EUR pallets up to 1600 mm high. It operates through an easy-to-use HMI panel for simple control. The system includes assembled cables and hoses in a flexible energy chain for easy installation, and sensors to monitor suction power for effective lifting. The robot comes with two fixed palletizing stations and protective enclosures with doors and locks for added safety.
The robot is pre-programmed and ready for startup, compliant with applicable CE directives.
Number of Axes | 4 |
Max. Load | 60 kg. |
Reach of Arm | 2000mm |
Repeatability | ±0.03mm |
Body Weight | 500 kg. |
IP Grade | IP54 |
Installation | Floor |
Certifacation supported | CE standard |
Motion range |
1 Axis | ±180° |
2 Axis | -35°~+90° |
3 Axis | -10°~+110° |
4 Axis | ±360° |
