NB7PCGM-PCL High-Speed Edgebanding Line with Return System
From:
From: 157.000,00 €
To: 180.000,00 €
(See it our showroom)
— Smart. Flexible. Zero-Setup Performance.
The NB7PCGM-PC is a next-generation edge banding solution designed for manufacturers demanding flexibility, precision, and automation. Whether you’re running single-piece production or operating in integrated line manufacturing, this machine delivers unmatched efficiency through its intelligent PC control, dual gluing units, and automatic setup via barcode scanning.
Engineered to handle fast glue color changes, narrow edge applications, and operator-friendly returns, the NB7PCGM-PC minimizes downtime and maximizes output. From small-batch craftsmanship to high-volume production—this machine is built to adapt.
Key Features
- Efficient production with minimal downtime
- Code scanning minimizes errors and saves time
- Easy to operate for all users
- High processing quality
- Simple integration with existing systems
- 3 years of warranty
- With return system
Description
Key Features & Highlights
PC-Controlled Automation
- User-friendly software interface
- Machine setup by QR code scanning
- Full system control and data tracking via ModBus/TCP
Dual Gluing Units for Fast Color Switching
- Two pre-melt glue tanks (PUR optional)
- Switch between dark and light glue instantly
- Flexible production with minimal delay
Automatic Tool Adjustment & 8-Tape Changer
- Auto tool positioning based on workpiece label
- 8-tape cassette system
- Zero manual setup time between jobs

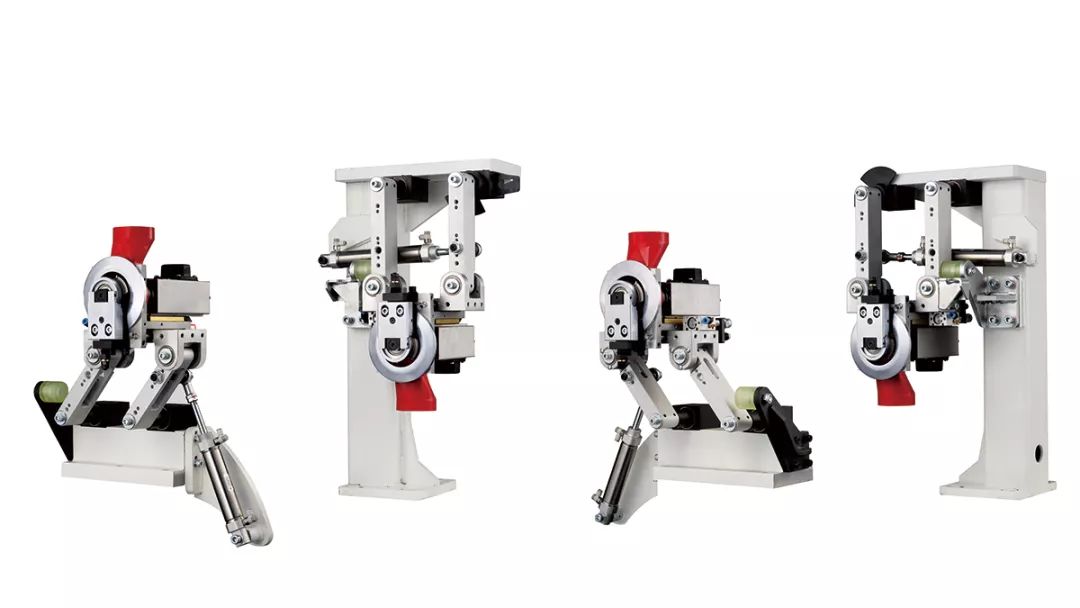

Advanced Edge Processing System
- Two full sets: Fine trimming, scraping & buffing
- One set retracts automatically during glue switch
- Set-up time reduced to near zero
Compact Pressure & Assistance Rollers
- Ideal for narrow edge banding
- Stable and consistent edge pressure

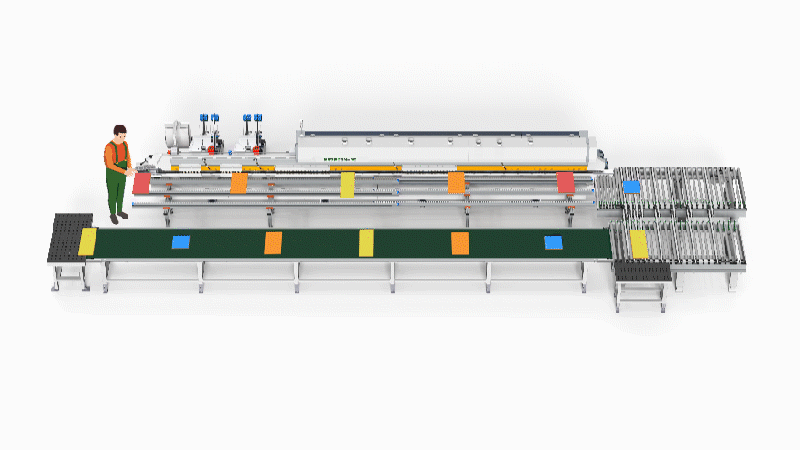

Optional Return Conveyor with Air Floating Table
- Smooth return of workpieces
- Increases operator efficiency
- High capacity with gentle handling
Technical Benefits
- High-speed production for varied edge profiles
- Efficient glue color changes with no cross-contamination
- Integrated into smart factory systems
- Minimal setup, maximum uptime
- Scalable for both stand-alone and line production
NB7PCGM-PC — When you need to switch fast, finish clean, and stay ahead.
Panel length | 120 mm |
Panel width | 60 mm |
Min panel size | 120 mm x 80 mm |
Panel thickness | 9 mm – 60 mm |
Edge tape | 0,4 mm – 3 mm |
Edge tape width | 15 mm – 65 mm |
Track speed | 18/22/26 m/min |
Dust outlet | 8 x 125 mm dia |
Weight | 6110 kg |
Dimensions | 11200mm x 1450mm x 1650 mm |
