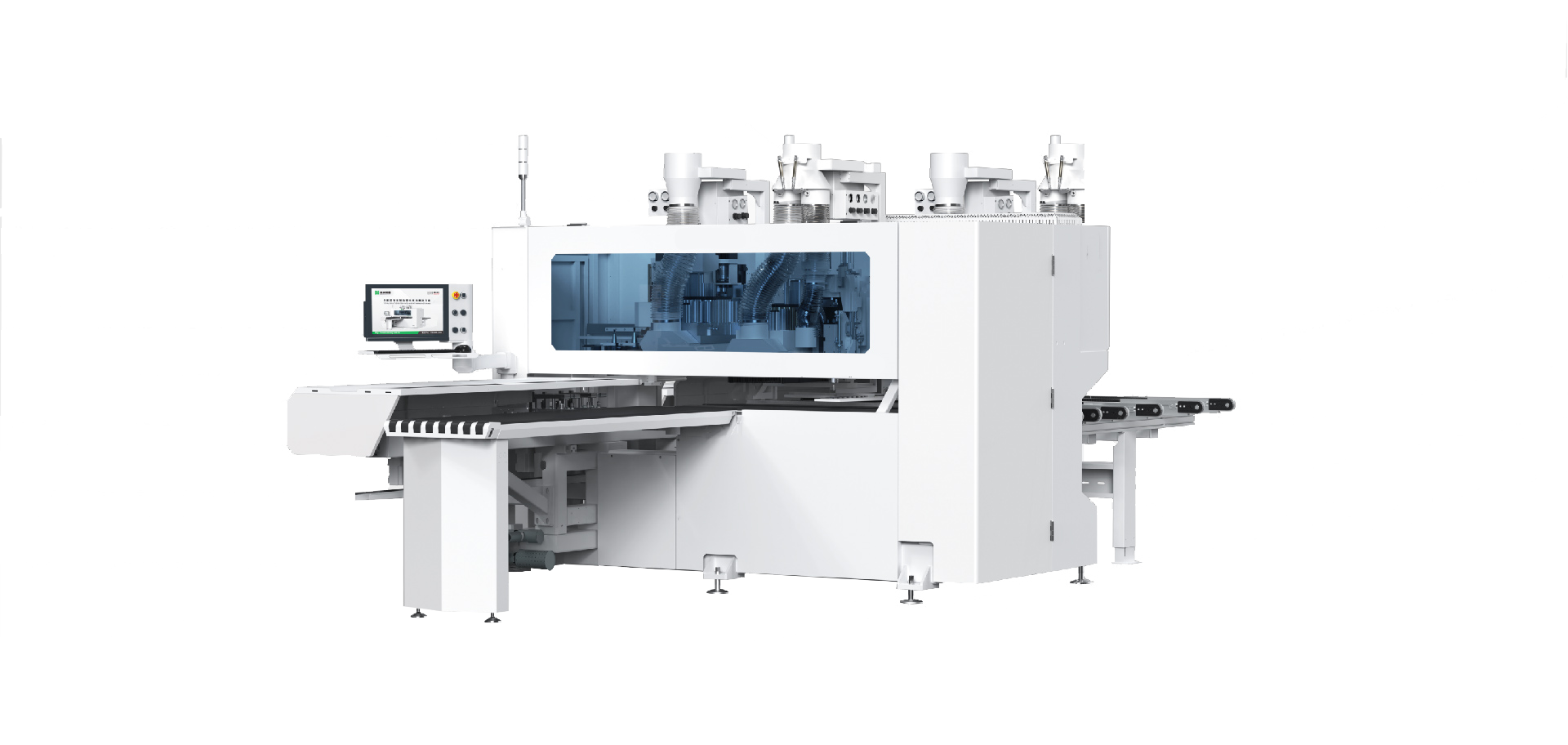

ND612DCT
The ND612DCT is an advanced CNC 6-sided drilling machine developed for modern furniture and panel manufacturers who require maximum flexibility, high precision and batch-size-one production efficiency.
The machine performs 6-sided drilling, front and side grooving, front milling, side milling and special hardware processing in one setup. Equipped with two top drilling blocks, one bottom drilling block, a 5.5 kW ATC main spindle and a 5.5 kW C-axis crosshead spindle, the ND612DCT handles complex machining tasks such as Lamello joints, invisible hardware, wiring channels and hinge mortises with ease.
Five advantages of the ND612DCT
- True 6-sided machining in a single cycle
- Advanced C-axis spindle for multi-directional milling and grooving

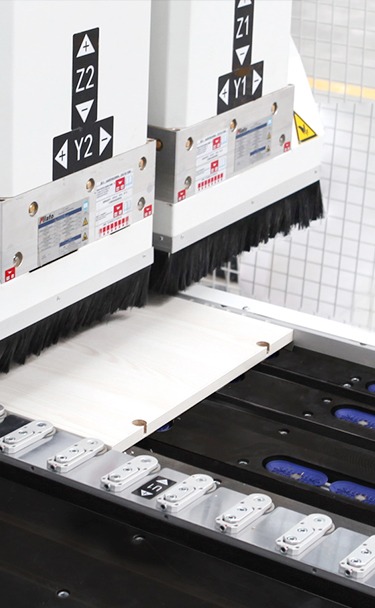

- Dual top drilling blocks for high-speed and high-precision processing
- Open CNC software supporting most furniture file formats
- Designed for batch-size-one
Exterior
- Heavy-duty, stress-relieved machine frame for long-term accuracy
- 5.5 m high-rigidity clamp beam for stable and fast positioning

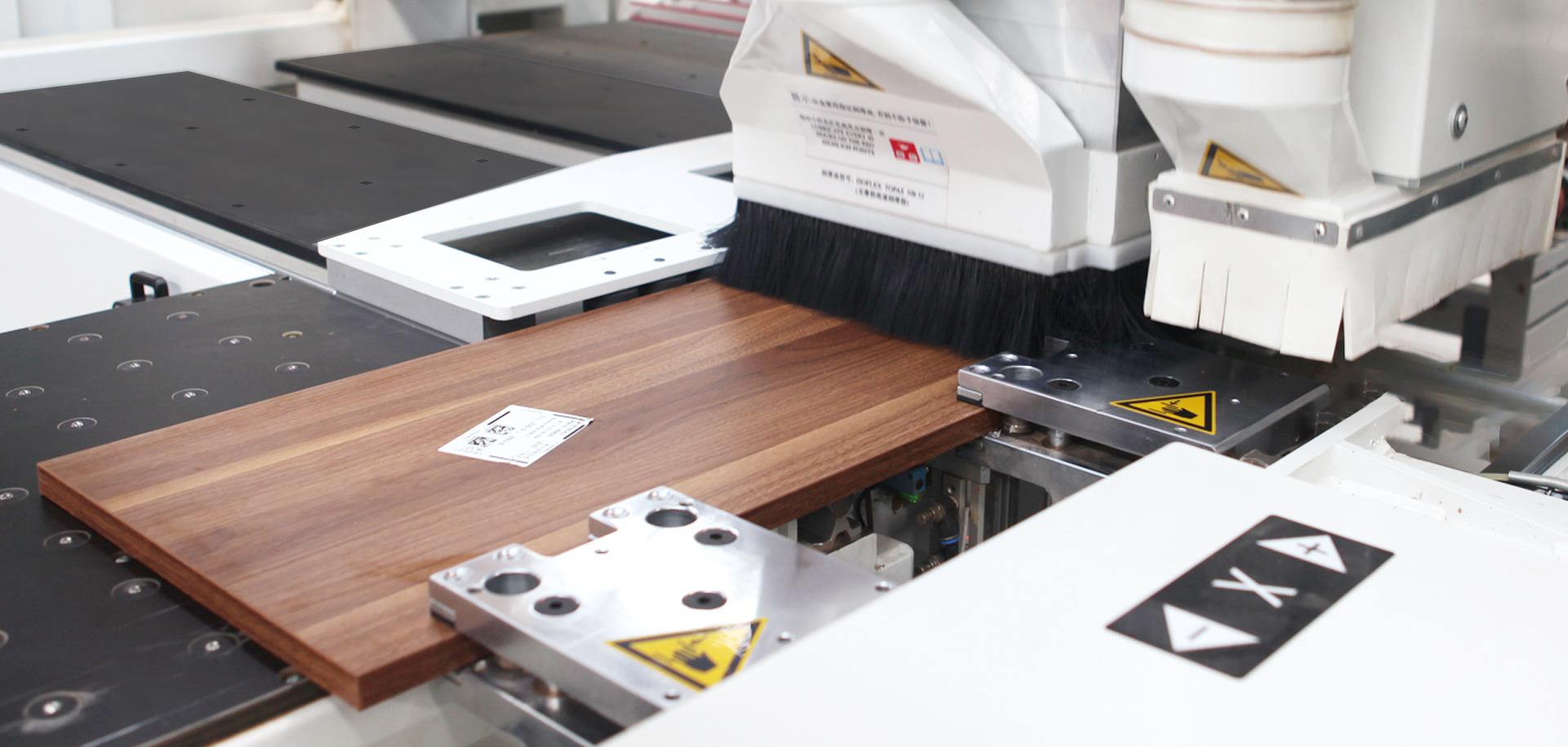

- Floating infeed table to protect panel surfaces
- Side outfeed conveyor table, selectable front or rear discharge
Operation and control
- User-friendly graphical interface with simulation and diagnostics
- Barcode-ready workflow for production
- Automatic tool measurement and tool-life management
- Manual hand controller for fast setup and commissioning
News and updates
- Optimized drilling block layout for higher throughput
- Improved accuracy through board width detection and compensation
- Expanded invisible hardware and Lamello processing capability
- Faster processing speed compared to conventional 6-side drills
ND612DCT – CNC 6-Sided Drilling Machine
Selected Standard Equipment and Features:
- CNC 6-sided drilling, front/back grooving and milling in one setup
- Panel size range:
- Length: 200–3000 mm
- Width: 30–1220 mm
- Thickness: 10–60 mm
- Drilling configuration:
- 2 top drilling blocks (19 vertical drills each)
- 1 bottom drilling block (9 vertical drills)
- Horizontal drills: X & Y directions
- Main spindles:

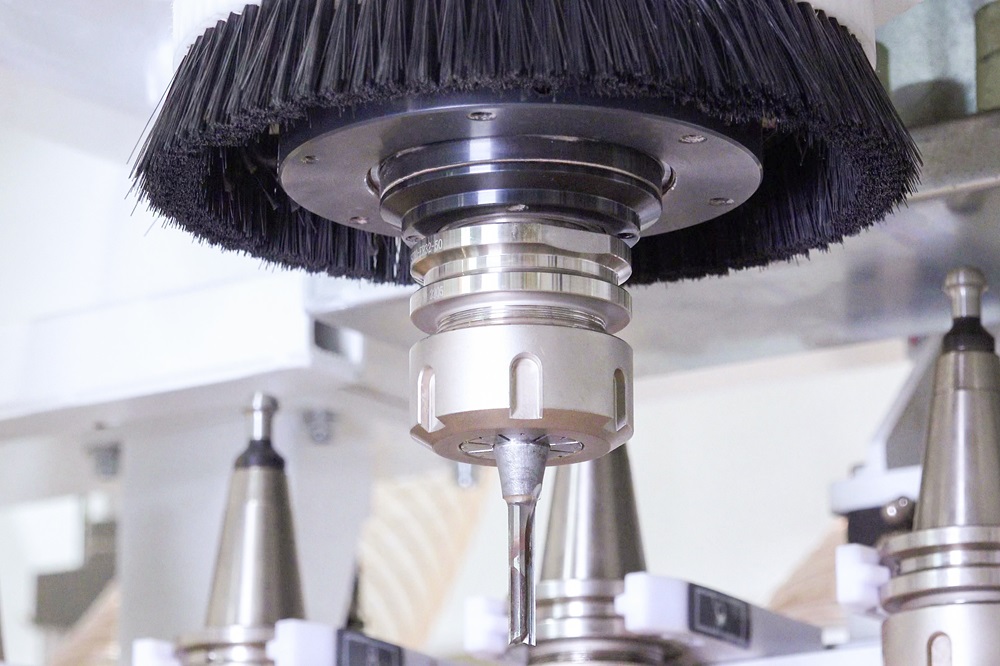

- 5.5 kW ATC main spindle (ISO30, up to 18,000 rpm)
- 5.5 kW C-axis crosshead spindle with 2-slot ATC
- 3.5 kW bottom spindle (ER25)
- 8-slot automatic tool changer with tool-length measuring system
- Cross-head aggregate for multi-directional side milling
- Bevel milling aggregate (0–90°) for Lamello processing
- Side grooving with saw blade for light troughs

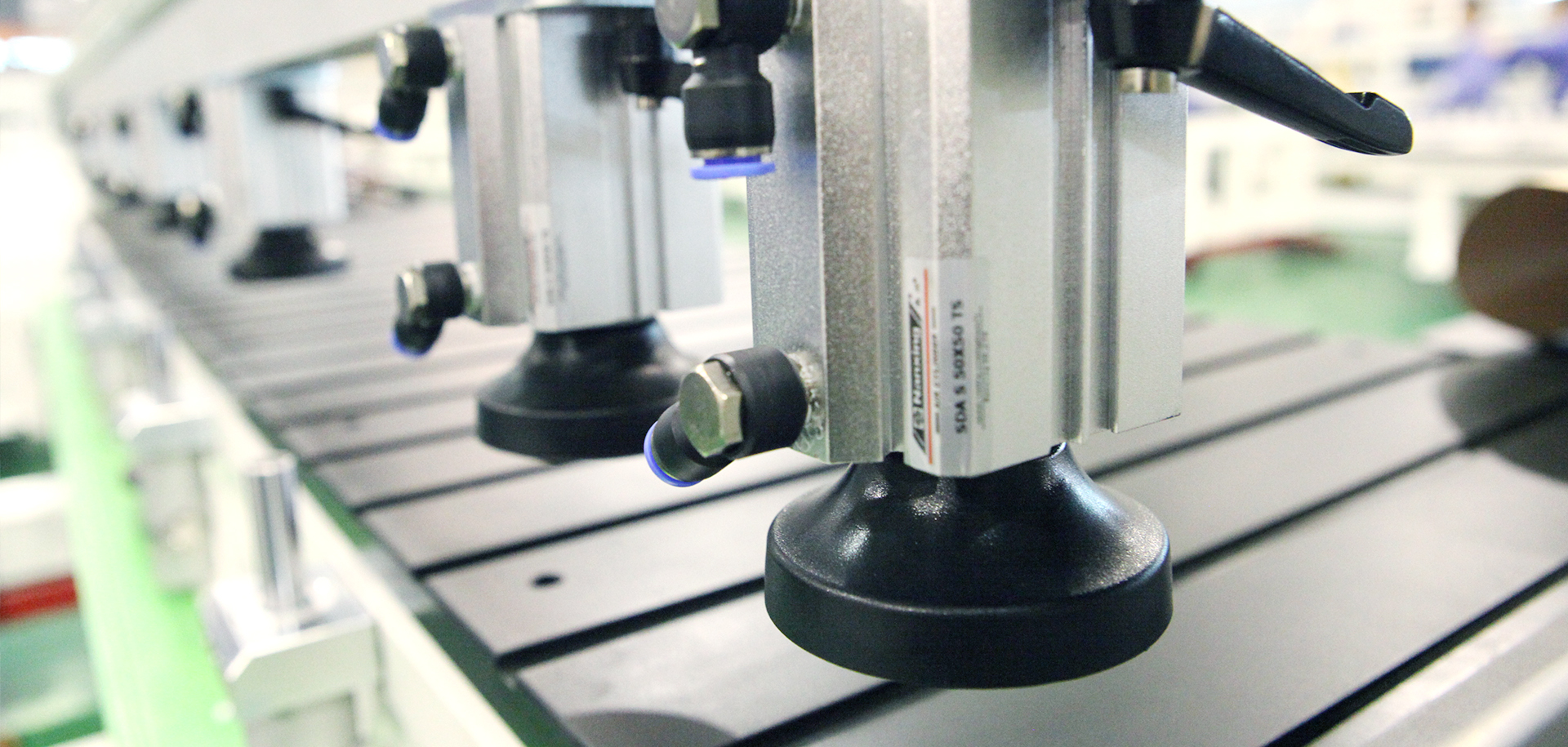

- Support plates to prevent panel deformation during processing
- Automatic side alignment with air-jet cleaning
- Board length and width detection with alarm & compensation
- Automatic lubrication system
- Stack processing with mirror drilling support
- Dust extraction: Ø200 mm (top) + Ø125 mm (bottom)
- Total power: 31.1 kW
- Machine dimensions: 6150 × 3840 × 2320 mm
- Net weight: 3680 kg
- Integrated safety system (CE compliant)
- 3 years warranty
Price from: 98.655€
FAQ – ND612DCT – CNC 6-Sided Drilling Machine
What materials can the machine process?
The ND612DCT is designed for wood-based panels such as MDF, particleboard, plywood and laminated boards.
Is the operation simple?
Yes. The machine is operated via an intuitive SYNTEC CNC interface with graphical programming, simulation, barcode support and automatic tool management.
What equipment comes as standard?
Dual top drilling blocks, bottom drilling block, ATC main spindle, C-axis crosshead spindle, 8-slot tool changer, side grooving unit, automatic alignment, lubrication system and full CNC control.
Are there any safety features?
Yes. The ND612DCT is CE-certified and equipped with emergency stop functions, optional light barrier, safety fence, and board detection systems.
How is the machine operated in practice?
Panels are loaded onto the floating infeed table, automatically aligned and clamped. The CNC system then performs drilling, grooving and milling on all required sides in one cycle, before automatic outfeed.
Which companies are the target group?
Furniture manufacturers, cabinet producers and industrial woodworking plants that require high-precision, flexible 6-sided drilling with advanced hardware processing.
