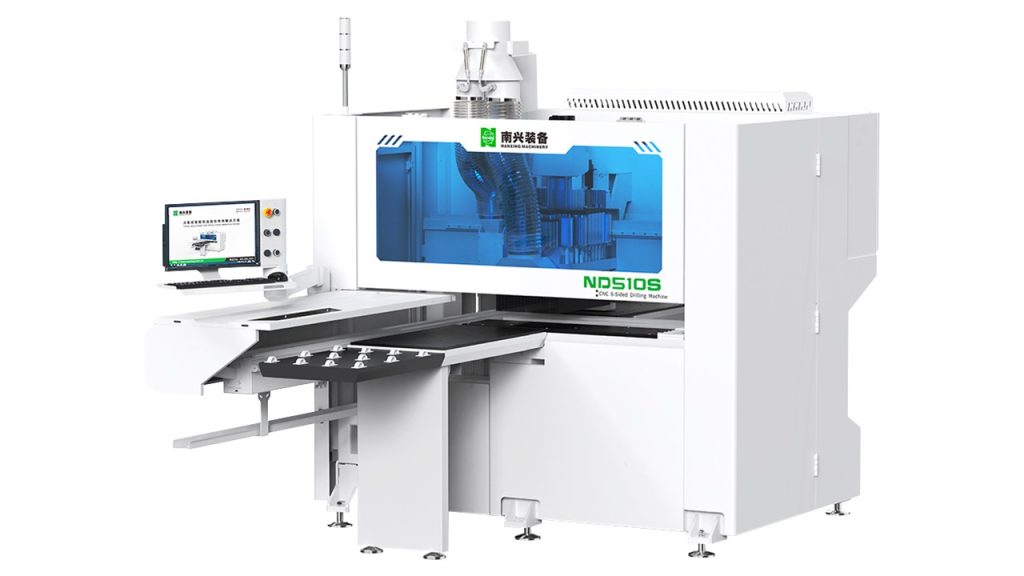

ND510S
The compact and versatile ND510S has been developed for maximum flexibility in modern production.
The machine is equipped with drilling units both on the top and bottom, as well as the option for 6-sided drilling, slot sawing, and milling.
This makes the ND510S a powerful solution for companies working with complex series, varying batch sizes, and the need for high production speed.
The machine comes with an open software platform that supports most file formats on the market and is standard-equipped with a side discharge belt (with the option of front or rear discharge).
Five advantages of the NCG2812E
- 6-sided drilling with top and bottom modules
- Integrated slot sawing and milling functions
- High flexibility – ideal for batch-size-one production
- User-friendly software with open interface for various formats
- Standard side discharge belt with flexible discharge direction
Construction and Design
- Robust steel construction with high stability
- Compact machine design for easy integration into production lines
- CE-approved safety system
- Efficient dust and chip extraction
Operation and Control
- SYNTEC control system with user-friendly interface
- Rack & pinion drive for X and Y axes, ball screw for Z axis
- Side adjustment with rack & pinion for precise positioning
- Rapid feed: up to 135 m/min
- Flexible discharge options (side, front, or rear)
News and Updates
- New combination of top/bottom drilling blocks for more flexible drilling
- Updated software integration with the most commonly used formats on the market
- Improved energy consumption and optimized transmission for higher precision
ND510S –
6-Sided Drilling
Selected Standard Equipment and Features:
- 6-sided drilling (top & bottom), grooving & routing – flexible batch production and batch-size-one
- Capable of processing panels down to 200 × 30 × 10 mm
- Table size: 1232 × 275 × 955 mm
- Panel dimensions: length 200–3000 mm, width 50–1000 mm, thickness 10–60 mm
- Vertical drills: 10 pcs
- Horizontal drills: X = 6, Y = 4
- Bottom drills: 9 pcs
- Grooving saw: 1 × 1.7 kW, Ø100 × 22 mm, cutting depth up to 12 mm
- Main spindle/routing: 3.5 kW, 18,000 rpm
- Transmission: X/Y axes – rack & pinion, Z axis – ball screw, side alignment – rack & pinion
- Feed speed: 135 / 135 / 75 / 30 m/min (X / Y / Z / side alignment)
- Side discharge belt standard, front/rear discharge optional
- Control system: SYNTEC CNC – supports multiple file formats
- Servo motors on all axes for high precision
- Automatic side alignment and panel positioning
- Barcode reader for job data and barcode import
- Total installed power: 13.87 kW
- Machine weight: 3850 kg
- Dimensions: 3962 × 2222 × 2271 mm
- Air supply: 6–7 bar
- Stable CNC-machined steel construction
Price from: 47.077€
Contact for quote
FAQ – ND510S, 6-Sided Drilling
What materials can the ND510S process?
The ND510S is designed for precise drilling, routing, and grooving of wood-based panels, including MDF, chipboard, plywood, particleboard, and veneered or laminated materials.
Its 6-sided processing allows the machine to handle even complex furniture components with high accuracy and minimal manual repositioning.
Is operation simple?
Yes.
The ND510S features a user-friendly SYNTEC control system with an intuitive interface and support for multiple file formats.
Operators can easily import job files, monitor drilling positions, and manage production in real time.
Additional features include:
- Automatic side alignment and panel positioning
- Barcode reader for job data and quick setup
- Error and status monitoring via touchscreen
- Flexible discharge direction (side, front, or rear)
What equipment is included as standard?
The ND510S comes fully equipped for 6-sided drilling, slot sawing, and routing, including:
- Top and bottom drilling modules for full 6-sided machining
- Vertical drills: 10 pcs | Horizontal drills: X = 6, Y = 4 | Bottom drills: 9 pcs
- Grooving saw: 1.7 kW, Ø100 × 22 mm, cutting depth up to 12 mm
- Main spindle/routing unit: 3.5 kW, 18,000 rpm
- Servo-driven X/Y/Z and side alignment axes
- Feed speed: 135 / 135 / 75 / 30 m/min (X / Y / Z / side alignment)
- Automatic side discharge belt (front/rear optional)
- Barcode scanning system for job tracking
- CE-certified safety enclosure and dust extraction
Are there safety features?
Yes. The ND510S is CE-certified and designed with several built-in safety systems to ensure operator protection and stable performance, including:
- Fully enclosed structure with safety doors
- Automatic monitoring of spindle, air pressure, and positioning errors
- Emergency stop buttons at key access points
- Dust and chip extraction system for a clean work environment
- Robust steel frame that minimizes vibration and enhances drilling precision
How is the machine operated in practice?
In daily use, the workflow is fast and efficient:
- The operator loads the workpiece onto the table.
- Job data is scanned via barcode or imported through the control system.
- The machine automatically positions the panel and begins top, bottom, and side drilling according to the set program.
- Slot sawing and routing are performed as part of the same cycle.
- Finished parts are discharged automatically through the side, front, or rear belt, depending on the setup.
What type of companies are the target group?
The ND510S is ideal for furniture manufacturers, joinery workshops, and interior production companies that need high flexibility, fast setup, and precision in multi-sided drilling.
