NB860EC
The NB860EC is a versatile, high-precision edge banding machine engineered for modern furniture manufacturing, combining a heavy-duty mechanical structure with a wide range of integrated processing units. Designed to handle complete edge banding – from pre-milling to final buffing – in a single seamless workflow, the NB860EC delivers superior finishing quality, fast production speeds and maximum operational stability.
With intelligent PC control, servo-adjusted infeed and trimming units, pneumatic corner rounding, and a nesting-friendly design, the NB860EC is ideal for factories requiring flexibility, high throughput and consistent precision. The machine operates at 16 / 20 / 24 m/min, making it well-suited for both standard and high-speed production lines.
Five advantages of the NB860EC
- Mechanical components for long-term stability
- Full edge banding workflow in one machine
- Intelligent PC control with servo adjustment of key units for fast setup
- Pneumatic corner rounding adjustment for increased efficiency
- Nesting-kit ready design – perfect for workpieces with pre-drilled nesting holes
Exterior
- Solid steel frame ensuring vibration-free operation
- Enclosed processing units for optimal safety and cleanliness
- Optimized roller infeed system for smooth panel transport
- Compact footprint suitable for small and medium workshops
Operation and control
- Intelligent PC control for fast, accurate adjustment of machining units
- Servo-adjusted: Infeed fence, Tape pressing rollers, Fine trimming and Scraping
- Pneumatic adjustment for corner rounding
- Automatic sequencing of all processing stages
News and updates
- Enhanced nesting compatibility for pre-drilled panels
- Faster setup via servo-controlled trimming and scraping
- Improved cutter and roller stability for better finishing quality
- Optimized dust handling through redesigned extraction ports

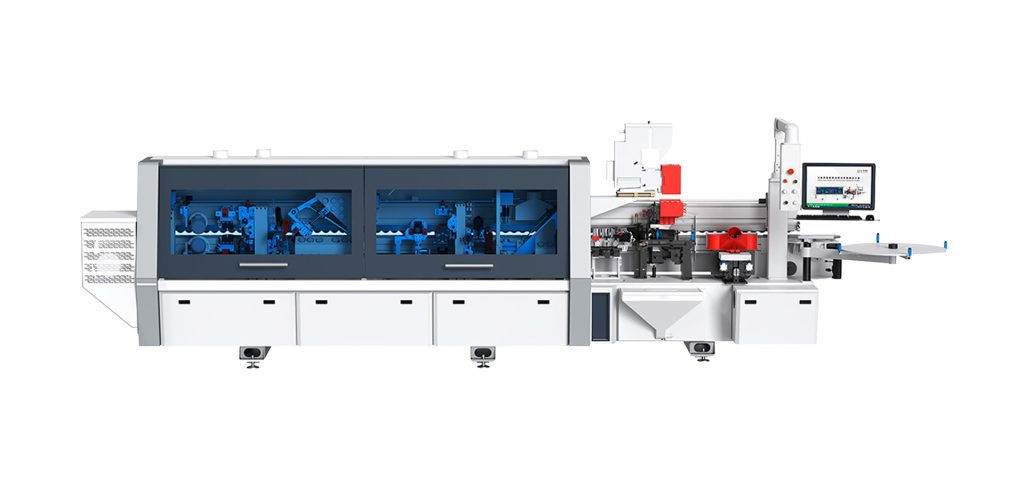

NB860EC Edge Banding Machine
Selected Standard Equipment and Features:
- Minimum panel length: ≥120 mm (≥200 mm for corner rounding)
- Minimum panel width: ≥60 mm
- Minimum panel size: 120 × 120 mm / 120 × 60 mm / 200 × 80 mm
- Panel thickness: 9–60 mm
- Edge tape thickness: 0.4–3 mm
- Feeding speed: 16 / 20 / 24 m/min
- Heavy-duty, CNC-machined machine body
- Intelligent PC control with servo-adjustment
- Pneumatic corner-rounding adjustment
- Nesting-friendly kit for pre-drilled panels
- Complete edge banding process in one pass:
- Pre-heating
- Pre-milling
- Glue pot
- Snipping
- End trimming
- Fine trimming
- Corner trimming
- Scraping & surface scraping
- Buffing
- Total power: 22 kW
- Machine dimensions: 5930 × 1450 × 1650 mm
- Net weight: 3000 kg
Price from: 66.753€
FAQ – NB860EC Edge Banding Machine
What materials can the machines process?
MDF, particleboard, plywood and similar board materials requiring edge banding.
Is the operation simple?
Yes. The NB860EC uses intelligent PC control with servo-adjusted trimming and scraping units, ensuring fast, intuitive setup and operation.
What equipment comes as standard?
- Pre-milling
- Pre-heating
- Glue pot
- Snipping & trimming units
- Corner rounding (pneumatic)
- Scraping & buffing
- Servo-controlled adjustments
- Nesting-friendly design
Are there any safety features?
Yes. The machine includes:
- Dust-extraction ports to maintain a clean working environment
- Enclosed processing stations
- Emergency stop systems
- Overload protection
How is the machine operated in practice?
The operator loads the panel, selects the program and the NB860EC automatically performs:
- Final buffing for a finished edge
- Pre-milling and gluing
- Trimming, scraping and corner rounding
Which companies are the target group?
Furniture manufacturers, cabinet makers and producers working with nested panels, high-speed edge banding and multi-step finishing processes.
