NB5JN
The NB5JN is a compact, heavy-duty edge banding machine designed specifically for narrow workpieces, making it an ideal solution for manufacturers handling slim panels and small-format components. With reinforced press rollers supported by auxiliary rollers at the infeed and between processing units, the NB5JN can reliably process panels as narrow as 30 mm in width while maintaining stable feeding and consistent edge quality.
Built on a rigid steel frame with CNC-machined mechanical components and equipped with high-quality electrical parts from globally recognized brands, the NB5JN delivers dependable performance, long service life and excellent cost efficiency for narrow-part edge banding applications.
Five advantages of the NB5JN
- Designed for narrow panels down to 30 mm width
- Heavy-duty machine body with CNC-processed mechanical parts

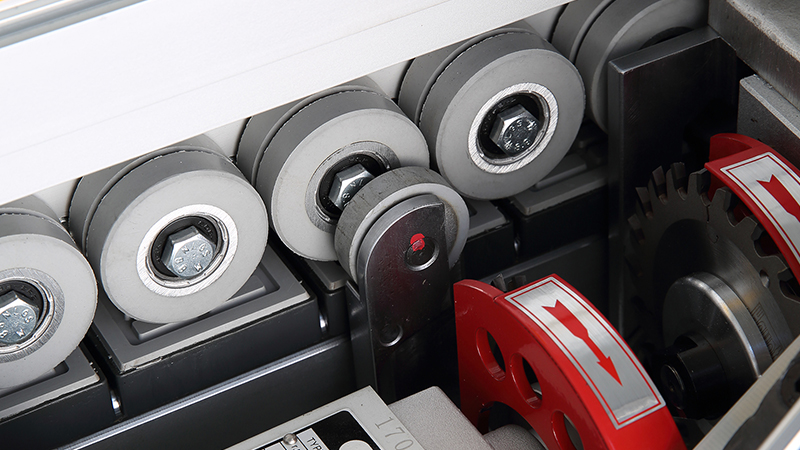

- Compact press roller system with auxiliary support rollers
- High reliability using electrical components from world-renowned brands
- Space-saving design with low power consumption
Exterior
- Rigid steel construction for vibration-free operation
- Compact footprint suitable for limited workshop space
- Optimized roller layout for stable narrow-part feeding
- Integrated dust extraction connections
Operation and control
- Simple, operator-friendly control system
- Stable feeding at adjustable speeds
- Reliable glue application and trimming sequence
- Designed for easy setup and low maintenance
News and updates
- Improved narrow-part stability with optimized roller geometry
- Enhanced mechanical rigidity for longer service life
- Improved electrical reliability with premium components
- Optimized energy efficiency

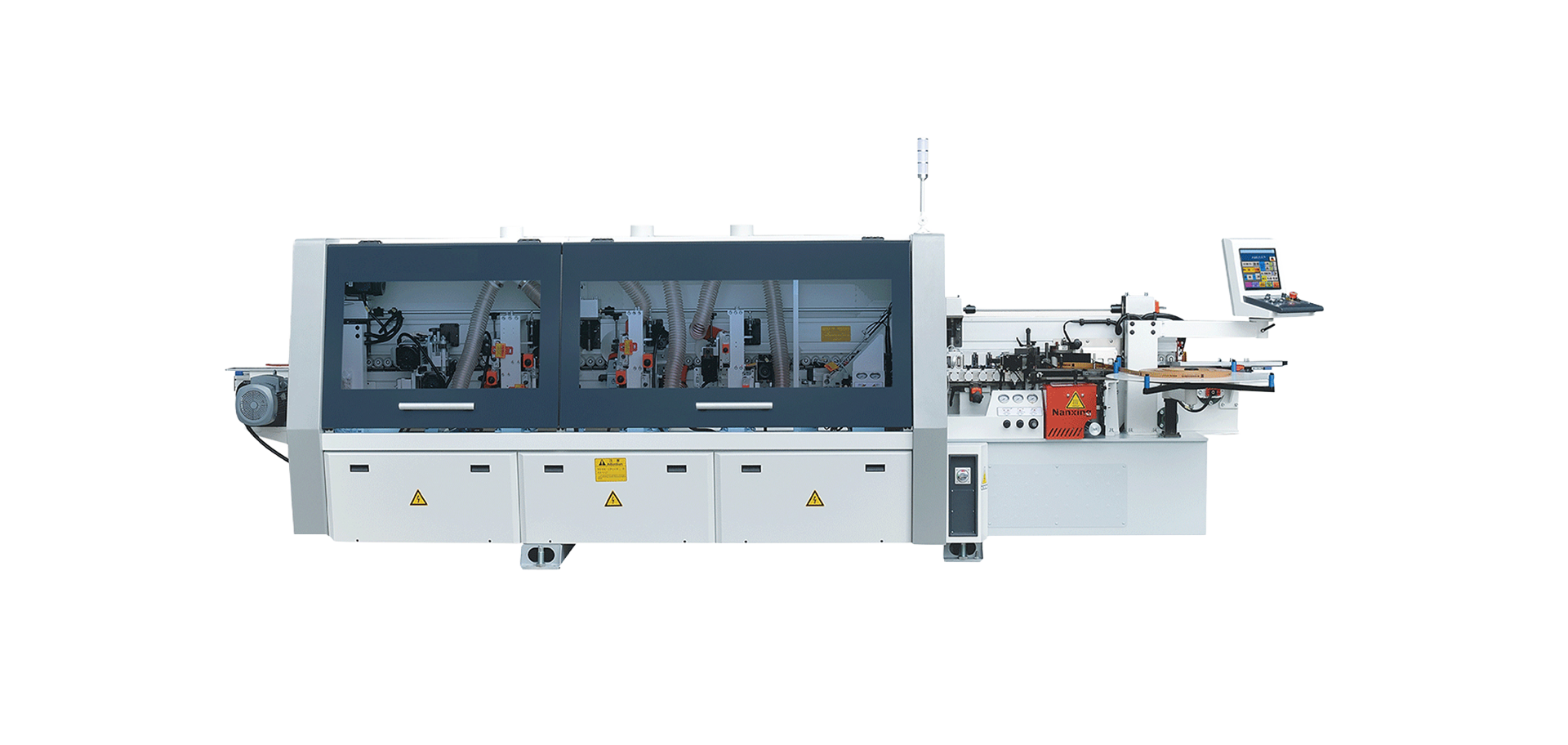

NB5JN Edge Banding Machine
Selected Standard Equipment and Features:
- Minimum panel length: ≥120 mm
- Minimum panel width: ≥30 mm
- Minimum panel size: 300 × 30 mm (long edge)
- Panel thickness: 9–60 mm
- Edge tape thickness: 0.4–3 mm
- Feeding speed: 16 / 18 / 20 m/min
- Heavy-duty machine frame with CNC-machined components
- Compact press rollers with auxiliary support rollers
- Electrical components from world-famous brands
- Dust extraction: Ø125 mm × 3
- Total power: 14.4 kW
- Machine dimensions: 5500 × 1450 × 1650 mm
- Net weight: 2250 kg
Price from: 28.121€
FAQ – NB5JN Edge Banding Machine
What materials can the machine process?
MDF, particleboard, plywood and similar panel materials, including narrow and small-format components.
Is the operation simple?
Yes. The NB5JN is designed for straightforward operation with stable feeding and minimal setup, even for narrow workpieces.
What equipment comes as standard?
- Compact press roller system with auxiliary rollers
- Heavy-duty CNC-machined frame
- Standard edge banding and trimming units
- Dust extraction connections
- Reliable electrical components
Are there any safety features?
Yes. The machine includes:
- Dust extraction to maintain a clean working environment
- Emergency stop systems
- Enclosed processing zones
How is the machine operated in practice?
The operator loads the narrow panel, sets the feeding speed, and the NB5JN automatically performs edge banding and trimming in a continuous process.
Which companies are the target group?
Furniture manufacturers, cabinet producers and workshops that regularly process narrow panels or slim components and require a compact, reliable edge banding solution.
