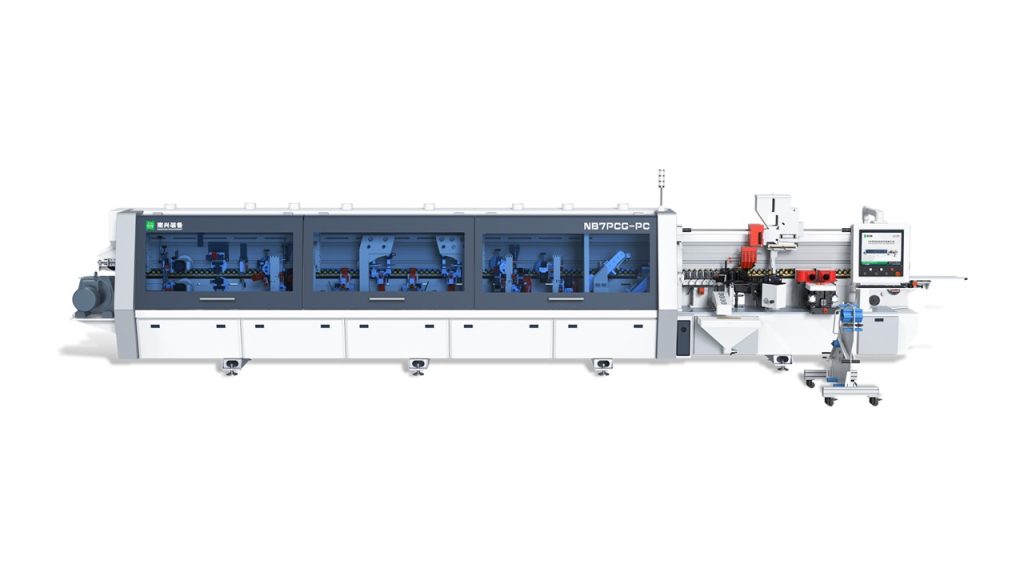

NB7PCG-PC
Single-sided Edge Banding Machine – Fully Equipped with V-Pressure Belt
The NB7PCG-PC is a fully equipped, high-end single-sided edgebander designed for perfect edges in craft workshops, mid-sized companies, and industrial production.
With V-belt panel pressing, smart automation, and a full suite of trimming and scraping units, it delivers stability, precision, and efficiency – even for complex and pre-drilled panels.
Five advantages of the NB7PCG-PC
- Fully equipped with pre-milling, pre-heating, pre-melt and quick-melt units
- 4 automatic edge tape changing for fast switching between different tape thicknesses
- Pneumatically controlled fine trimming and scraping units for easy adjustments

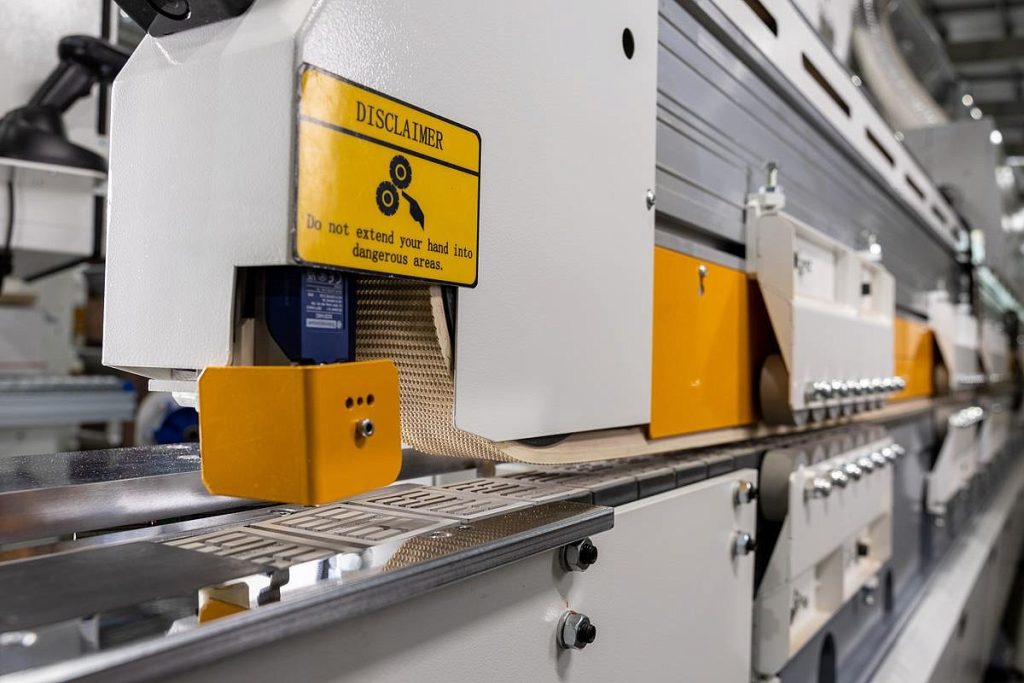

- V-pressure belt ensures maximum panel stability during processing
- Nesting kit compatible – handles pre-drilled parts with ease
Exterior
- Heavy-duty steel frame with compact industrial design
- PC control with intuitive interface
- Dust extraction with 8 outlets (Ø125 mm each)
- CE-certified for industrial safety
Operation and control
- Dual rails for end trimming for stable and accurate cuts
- Corner trimming with 4 high-power motors
- Pneumatic flat scraping, final scraping and buffing for a perfect finish
- Large pre-melt tank ensures consistent glue supply even under continuous production
- Track speed: selectable 18 / 22 / 26 m/min
News and updates
- Upgraded with 4-tape auto changing system for maximum flexibility
- New V-belt pressure system for even more stability
- Enhanced glue system with larger pre-melt tank
- Improved nesting compatibility for complex production needs
NB7PCG-PC – V-Pressure Belt
Selected standard equipment and features:
- Panel length (min.): 120 mm
- Panel width (min.): 60 mm
- Min. panel size: 120 × 80 mm
- Panel thickness: 9 – 60 mm
- Edge tape thickness: 0.4 – 3 mm
- Edge tape width: 15 – 65 mm
- Track speed: 18 / 22 / 26 m/min
- Total power: 33 kW
- Weight: 4750 kg
- Dimensions: 9350 × 1450 × 1650 mm
- V-belt pressing system for maximum stability during processing
- Pre-milling, pre-heating, pre-melt and quick-melt units
- Large pre-melt tank ensures glue supply for continuous high-speed production
- Automatic 4-tape edge changing system for fast switching between thicknesses
- Dual rails for end trimming
- 2 pneumatically controlled fine trimming units
- 4 high-power motors for precise corner trimming
- 2 pneumatically controlled radius scraping units
- Pneumatic flat scraping unit
- Final scraping and buffing units for perfect edge finish
- Nesting kit design – supports pre-drilled parts
- Integrated label reader for automated job identification
- PC control system with user-friendly interface
- Electronics from recognized international manufacturers
- CE certified – compliant with EU safety standards
- 3 years warranty
Price from: 74.253€
FAQ – NB7PCG-PC – V-Pressure Belt
Which materials can the machine process?
The NB7PCG-PC is designed for processing chipboard, MDF, plywood, veneered boards, laminated panels, and other common wood-based materials. With its pre-milling, precise trimming, and scraping units, it ensures perfect edges even on delicate or pre-drilled panels.
Is operation simple?
Yes.
The machine is controlled via a PC interface with an intuitive touchscreen system. Functions such as automatic tape changing, pneumatic unit adjustments, and glue management are software-guided, making operation straightforward and reducing setup time.
What equipment is included as standard?
The standard configuration includes pre-milling, pre-heating, pre-melt and quick-melt units, a large pre-melt glue tank, automatic 4-tape changing system, V-belt pressing system, dual rails for end trimming, corner trimming with 4 motors, fine trimming, radius scraping, flat scraping, final scraping, buffing units, and a nesting kit for pre-drilled parts.
Are there safety features?
Yes. The NB7PCG-PC is CE-certified and equipped with safety guards, emergency stops, and protective covers for all moving parts. It complies with EU safety standards to ensure operator protection during continuous production.
How is the machine operated in practice?
Panels are placed on the feed track and automatically guided through the processing line. The V-pressure belt holds panels firmly in position, while the pre-milling, edge gluing, trimming, scraping, and buffing units work in sequence. Operators control the process through the PC interface, with options to adjust track speed, select tape thickness, and monitor glue supply.
Which companies are the target group?
The NB7PCG-PC is designed for craft workshops, mid-sized manufacturers, and industrial producers that require high-precision edge banding with maximum flexibility.
