NPC330
The NPC330 is a compact, high-precision panel beam saw designed for workshops and smaller production facilities. With servo-controlled saw lifting, CNC guidance and a modern 15″ touchscreen, it provides stable, accurate and efficient panel cutting for single-piece or low-volume production.
Five advantages of the NPC330
- Compact format suited for limited space
- Servo/CNC-controlled cutting with precise adjustable saw height
- Air table for smooth handling of sheet materials
- 15″ Windows-based touchscreen
- Optional optimization and ERP integration
Exterior
- Rigid steel construction
- Front-loading with automatic pressure beam
- Efficient dust control and low-maintenance mechanics
- Space-saving design for single-side operation
Operation and control
- Windows-based control with update support
- Servo-controlled blade lifting (0.8–1 sec full stroke)
- Accurate grooving to ±0.1 mm
- Automatic blade descend calculation (based on blade diameter)
- Built-in error and maintenance diagnostics
News and updates
- New, improved touchscreen interface
- Higher cutting precision and speed
- Prepared for label printing and ERP connectivity
- CE-approved safety and monitoring systems

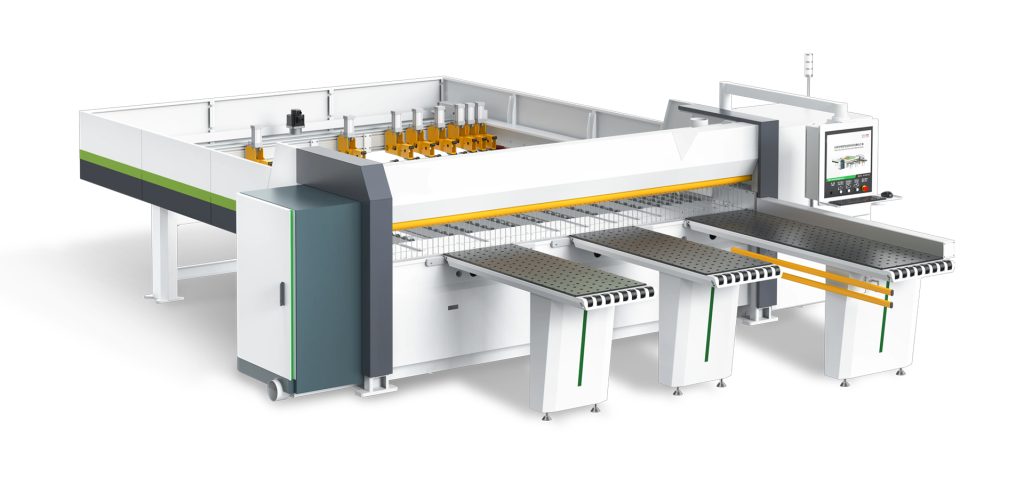

NPC330 Panel Beam Saw
Selected Standard Equipment and Features:
- Automatic high-precision sawing
- Servo-driven lifting system for fast stroke (0.8–1 sec)
- Grooving at variable depths (±0.1 mm accuracy)
- Max cutting length: 3300 mm
- Max cutting height: 100 mm
- Main saw motor: 11 kW
- Scoring motor: 1.5 kW
- Automatic pressure beam and material feed
- CNC-controlled linear guide system
- User-friendly 15” touchscreen for control
- Optional optimization software
- Air table for easy sheet handling
- Quiet operation and low energy consumption
- Built-in safety system (light barrier + emergency stop)
- Prepared for network and Industry 4.0 integration
- Quick-change design for the main saw blade
- Available with various options and extensions
Price from: 56.373€
FAQ – NPC330, Panel Beam Saws
What materials can the machine cut?
The machine is designed for cutting sheet materials such as chipboard, MDF and other wood-based panels.
Is the operation simple?
Yes. The NPC330 features:
- Servo-controlled lifting for simplified cutting setup
- Automatic saw control
- 15” color touchscreen
- Graphical interface for adjusting saw and cutting parameters
What equipment comes as standard?
The NPC330 is equipped with:
- Servo-driven saw blade lifting
- Air table
- Automatic pressure beam
- CNC-controlled cutting carriage
- Scoring motor
- Automatic saw feed
Are there any safety features?
Yes. The machine includes:
- Light barrier in front of the cutting zone
- Emergency stop
- Automatic pressure beam to secure the workpiece during cutting
How is the machine operated in practice?
Via the touchscreen, the operator can:
- Activate automatic cutting
- Select cutting schemes
- Adjust the saw feed
- Monitor error messages and maintenance status
Which companies are the target group?
The NPC330 is developed for wood and furniture manufacturers where sheet material cutting is central to production, especially those needing a compact, reliable and precise panel beam saw.
