NPL380D
The NPL380D is an advanced, high-capacity panel dividing saw designed for manufacturers requiring maximum throughput, flexible cutting modes and automated material handling. Equipped with a hydraulic lifting table, twin program fence, and a dual-pusher system, the NPL380D can cut two boards simultaneously in different sizes or orientations—boosting total cutting output by up to 30%.
With independent saw movements, automatic pressure beam adjustment and powerful feeding systems, the machine ensures high precision, shorter cycle times and reliable operation in demanding production environments.
Five advantages of the NPL380D

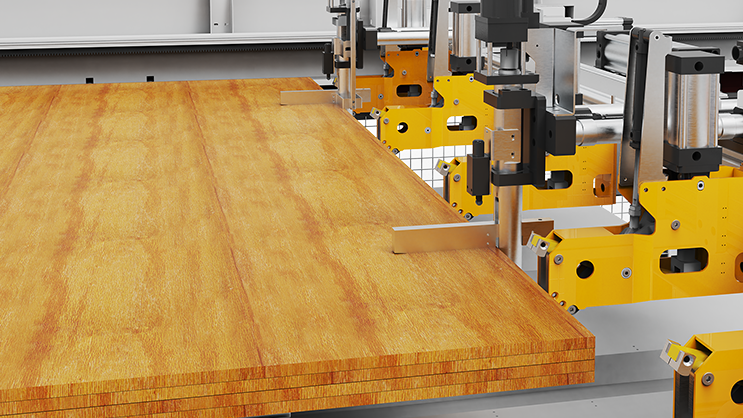

- Dual clamp & twin pusher system enabling simultaneous cutting of boards in different sizes
- Up to 30% higher productivity via synchronous crosswise/lengthwise cutting
- Independent up/down saw movements with auto-adjusting main saw height
- Hydraulic lift table with 5-ton loading capacity and multi-directional feeding
- Quick-change main saw blade system for reduced downtime
Exterior
- Extra-rigid industrial steel frame for continuous heavy-duty operation
- Hydraulic lifting table with powered/non-powered conveyors
- Feeding direction configurable: left, right, or rear/back
- Enlarged working area for handling oversized panels
- High-capacity dust extraction (Ø150 × 3)
Operation and control
- Two independent clamp/pusher systems working in parallel

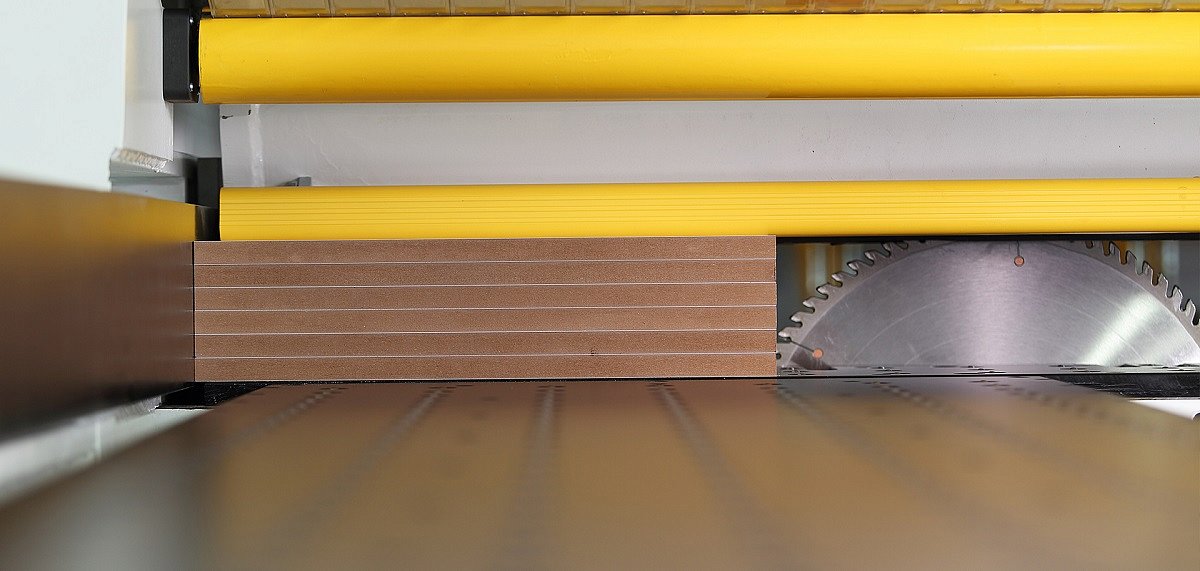

- Automatic pressure beam positioning based on panel stack height

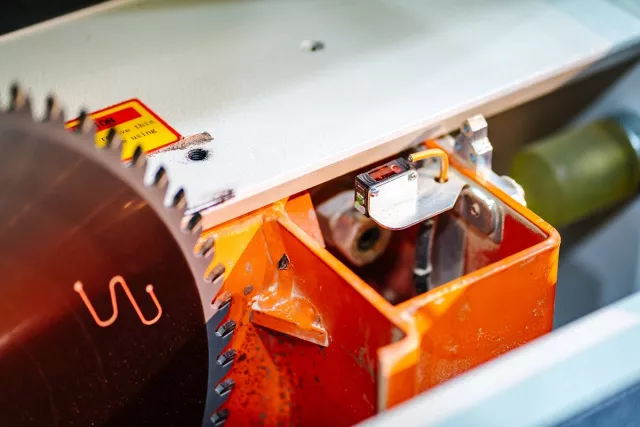

- Independent up/down control of both the main and scoring saw
News and updates
- New twin pusher system for increased productivity
- Improved pressure-beam automation for shorter travel cycles
- Higher front carriage speeds (up to 120 m/min)
- Extended feeding options with optimized table ergonomics
NPL380D Panel Beam Saw
Selected Standard Equipment and Features:
- Dual clamp systems for independent cutting sequences
- Twin pusher for simultaneous crosswise/lengthwise cutting
- Increased cutting capacity (up to +30%)
- Max cutting length: 3800 mm
- Max cutting thickness: 120 mm
- Main saw speed: 3910 rpm
- Scoring saw speed: 4150 rpm
- Saw carriage speeds: 120 m/min forward, 120 m/min backward
- Main saw motor: 18.5 kW
- Auto feeding speed: 85 m/min
- Rear feeding speed: 60 m/min
- Automatic pressure beam height adjustment
- Hydraulic lifting table (5 tons) with conveyors
- Dust extraction: Ø150 × 3
- Total power: 40 kW
- Machine dimensions:
- 13384 × 6700 × 2020 mm (feeding from back)
- 11700 × 9600 × 2020 mm (feeding from rear side)
- Net weight: 12,580 kg
Price from: 136.584€
FAQ – NPL380D Panel Beam Saws
What materials can the machines cut?
The NPL380D is designed for processing a wide range of panel materials, including chipboard, MDF, plywood, laminate boards and composite sheets.
Is the operation simple?
Yes. All cutting programs, feeding parameters, clamp settings and diagnostics are controlled through a user-friendly touchscreen interface. The machine automates alignment, pressure beam adjustment and cutting sequences to simplify daily operation.
What equipment comes as standard?
The NPL380D is equipped with:
- Full software package with cutting simulation, reports and barcode printing
- Twin pusher system
- Dual independent clamp sets
- Hydraulic rear lifting table (5-ton capacity)
- Automatic pressure beam adjustment
- Independent main and scoring saw movements
- Powered and non-powered conveyors
Are there any safety features?
Yes. The machine includes:
- Software-driven error monitoring and protection logic
- Light barriers / safety sensors at the working zone
- Emergency stop systems
- Automatic pressure beam securing the workpiece
- Controlled feeding zones to prevent operator interference during movement
How is the machine operated in practice?
The operator uses the touchscreen to:
- Activate automatic cutting cycles
- Select cutting patterns and twin-pusher configurations
- Adjust feed speeds and saw parameters
- Monitor diagnostics, error messages and production reports
The machine then handles alignment, feeding and cutting automatically.
Which companies are the target group?
The NPL380D is ideal for medium to large wood and furniture manufacturers, panel-processing plants and high-volume production facilities where productivity, automation and multi-panel cutting capability are essential.
