NCG2812E
The NCG2812E from Nicho Machines is an advanced nesting machine designed for intensive sheet metal processing. The machine combines high speed, precision and robust construction – and functions as a 3-in-1 alternative to a circular saw, drill and router.
With automated in- and out-feed table, powerful vacuum pump and intelligent control, the NCG2812E optimizes the entire production flow. The result is time savings, reduced material waste and high efficiency – regardless of whether you are working with small series or large productions.
Five advantages of the NCG2812E
- 3-in-1 solution: sawing, drilling and milling in one machine
- Four high-speed spindles for nesting, shaping and top drilling
- Automatic material handling with in- and out-feed table
- Powerful vacuum pump ensures stable workpiece retention
- User- and space-friendly compact design – CE certified
Construction and Design
- Robust steel construction for stable operation and long service life
- Automatic in- and out-feed table for efficient material flow
- Powerful spindles and tool holders for precise machining
- Efficient dust extraction system with multiple outlets
- Compact layout saves space in production
Operation and Control
- New generation of high-speed spindles (24,000 rpm)
- Optimized nesting software for better material consumption
- Updated design with focus on efficient operation and easy maintenance
News and Updates
- New generation of high-speed spindles (24,000 rpm)
- Optimized nesting software for better material consumption
- Updated design with focus on efficient operation and easy maintenance

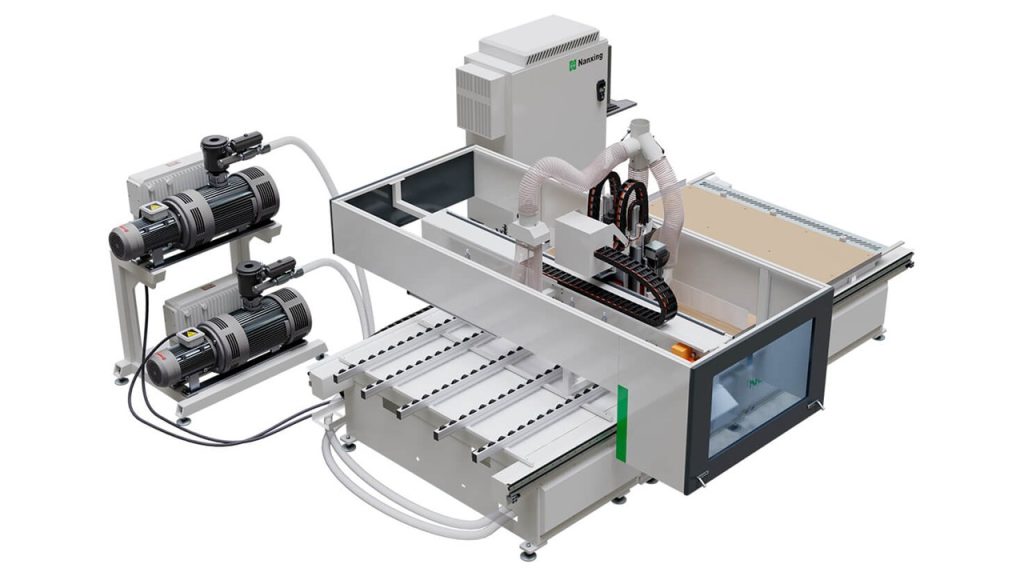

NCG2812E – Stand Alone CNC Nesting Machine
Selected Standard Equipment and Features:
- 3-in-1 CNC nesting machine for sawing, drilling and routing
- Alternative to circular saw, drilling machine and router
- Optimized working cycle saves time, labor and raw materials
- Four high-speed spindles for nesting, shaping and top-side boring
- Automated feed-in/out table with unloading pusher and dust collection
- Working range: X 2800 mm, Y 1220 mm, Z 50 mm

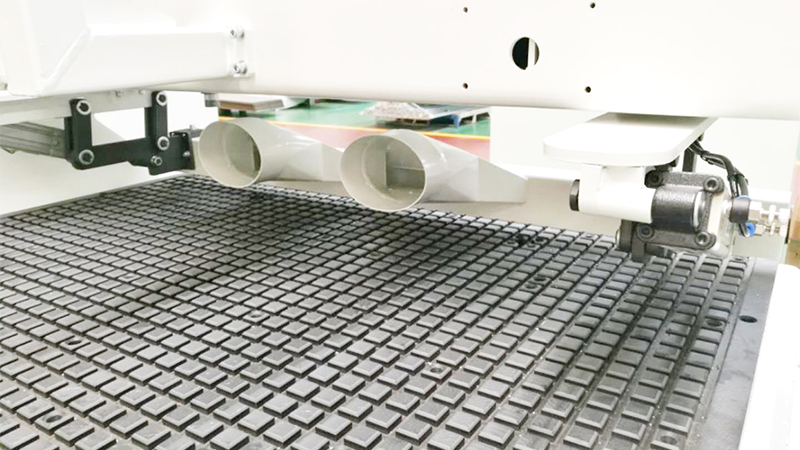

- Working table size: 2800 × 1220 mm, divided into 7 vacuum zones
- Main spindle: 9 kW, ISO30, 24,000 rpm
- Drilling block: 10 drills, 4000 rpm
- Automatic line tool changer with 12 slots (ISO30 ER32 couplers)
- Vacuum pump: 7.5 kW oil-cooled, 300 m³/h suction
- Max travelling speed: X/Y 60 m/min, Z 20 m/min
- Heavy-duty welded steel body with stress-relieved gantry frame
- Servo motors for precise axis control (X/Y/Z)
- Automatic greasing system for low maintenance
- Side positioning cylinders and positioning cups for panel alignment
- Protective safety fence and light curtain for operator safety
- User-friendly SYNTEC control system with open port for software integration
- Standard FCC optimizing software included
- Dust extraction outlets: Ø150 mm × 1, Ø125 mm × 2
- Air supply: 6–7 kg/cm²
- Power supply: 380V, 3-phase, 50 Hz
- Total power: 24 kW
- Floor space: 4200 × 2460 × 2500 mm
- Net weight: 2500 kg
Price from: 66.280€
Contact for quote
FAQ – NCG2812E – CNC Nesting stand-alone
What is the NCG2812E used for?
The NCG2812E is a 3-in-1 CNC nesting machine designed for sawing, drilling, and routing sheet materials. It’s ideal for intensive production of furniture components, cabinetry, and custom panels. By combining multiple machining processes in one system, it significantly improves efficiency and reduces material waste.
What materials can the NCG2812E process?
The NCG2812E is suitable for a wide range of wood-based and composite materials, including MDF, chipboard, plywood, laminate, and acrylic panels. Its strong vacuum system and high spindle speeds ensure precise results and clean edges across different material types and thicknesses.
Is operation simple?
Yes. The machine features a user-friendly SYNTEC control system with intuitive menus and visual programming.
Operators can easily:
- Import or create nesting files
- Adjust cutting parameters
- Monitor tool wear, vacuum zones, and spindle operation
- Use the automatic tool changer for seamless transitions between operations
What equipment is included as standard?
The NCG2812E comes fully equipped for industrial use, including:
- 9 kW main spindle (24,000 rpm, ISO30)
- Drilling block with 10 drills (4,000 rpm)
- Automatic line tool changer with 12 tool slots
- 7-zone vacuum table for secure material hold
- 7.5 kW oil-cooled vacuum pump (300 m³/h)
- Automatic in- and out-feed tables with unloading pusher
- Servo-driven X/Y/Z axes for precision movement
- Automatic greasing system for low maintenance
- Protective safety fence and light curtain
- Dust extraction outlets (Ø150 mm × 1, Ø125 mm × 2)
All machines are CE-certified and designed for long-term durability.
Are there safety features?
Yes. The NCG2812E includes multiple integrated safety systems to ensure secure operation:
- Protective safety fence and light curtain around the working area
- Emergency stop buttons at key access points
- Error and overload monitoring via the SYNTEC control system
- Automatic vacuum zones to keep panels securely in place
- Stable steel frame construction that reduces vibration and risk of mechanical failure
How is the machine operated in practice?
In everyday operation:
- The operator loads the material onto the automatic in-feed table.
- The nesting file is selected via the SYNTEC control panel.
- The system automatically positions, vacuums, and processes the sheet according to the program.
- Finished parts are automatically unloaded to the out-feed table.
What type of companies are the target group?
The NCG2812E is designed for furniture manufacturers, joineries, and panel processing companies that require high-precision, high-speed production.
