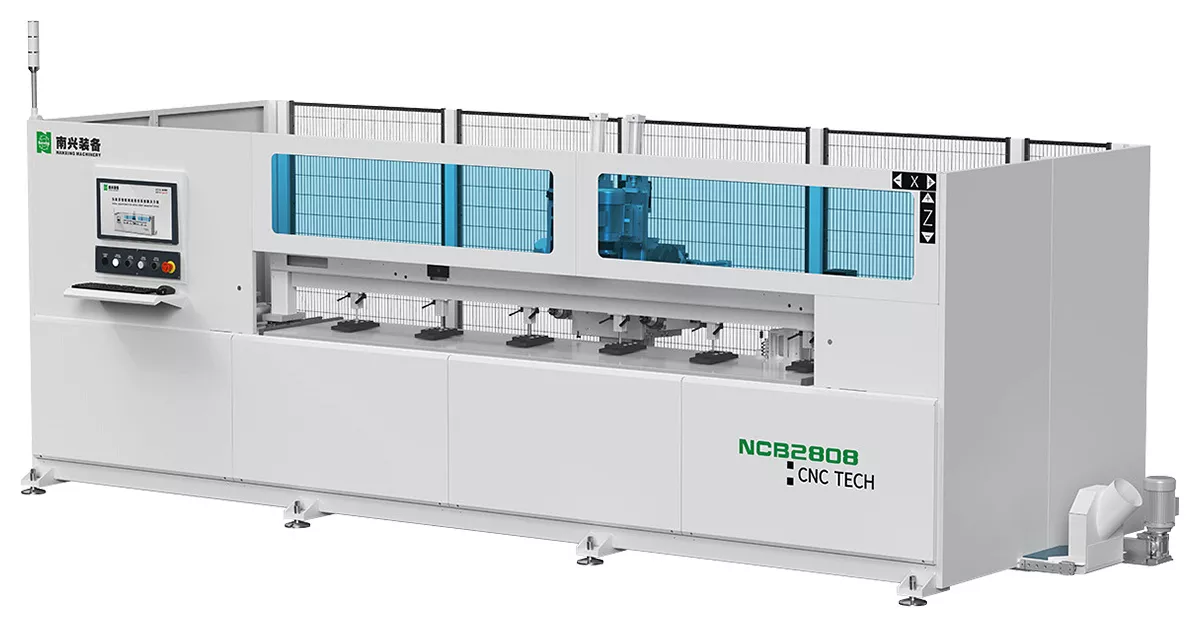

NCB2808 M
Multi-functional CNC machine for precise drilling and milling in a single process. The NCB2808 M is ideal for manufacturing doors, drawers, face frames, and other woodworking parts where fast setup and high accuracy are essential.
The machine automatically detects material thickness, handles tool changes, and adjusts positioning — saving time and increasing efficiency.
Five advantages of the NCB2808M
- Automatic detection and adjustment based on material thickness

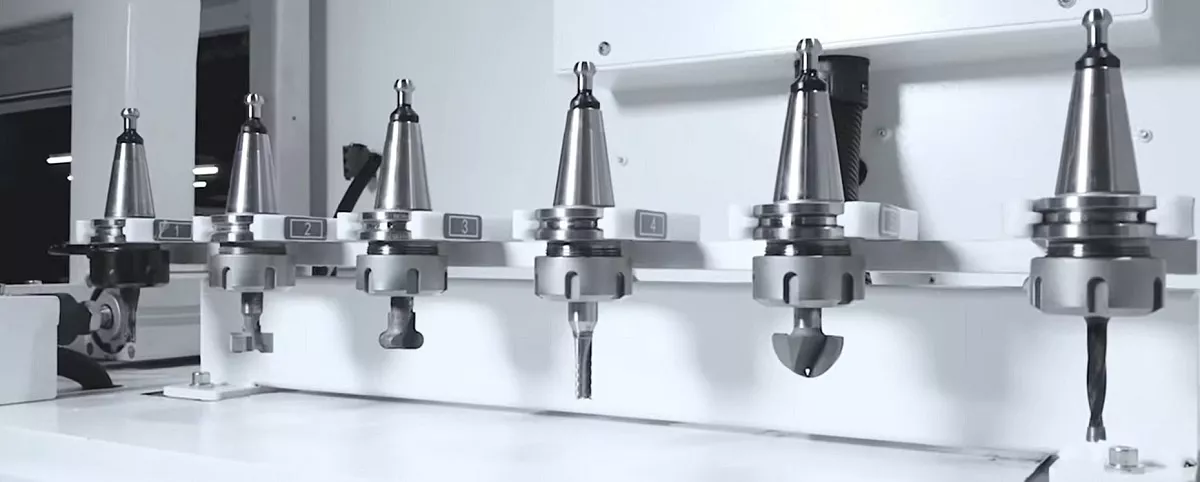

- Fast tool changes with a 6-position inline tool magazine

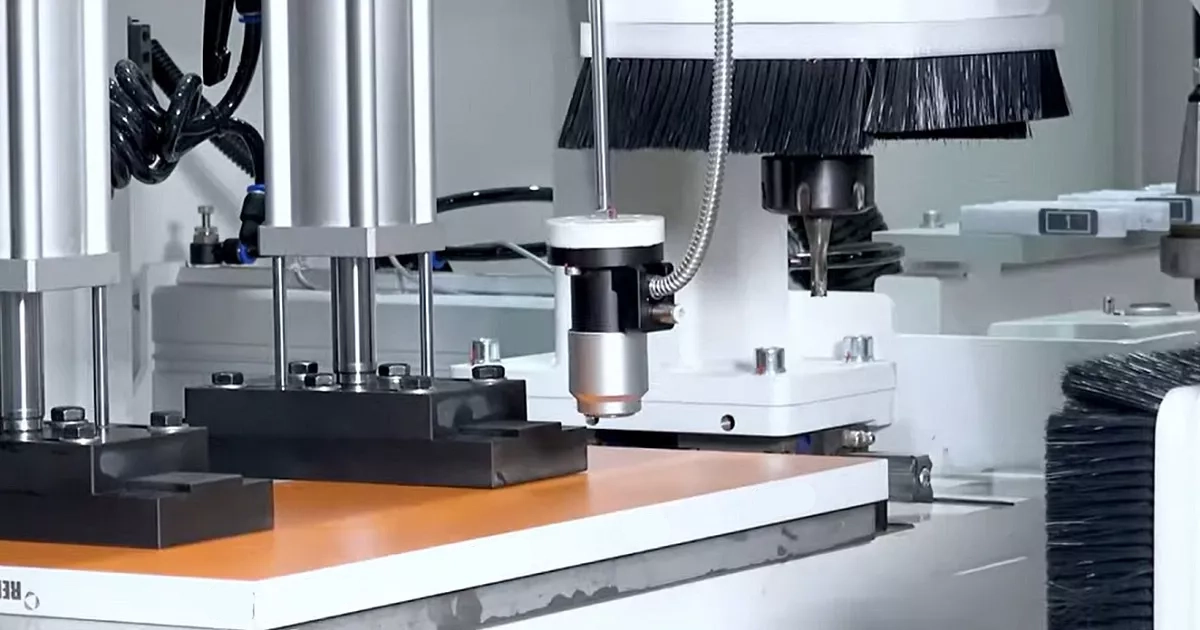

- Vertical and horizontal tool setters for accurate operation
- Three-stage beam positioning (0–160 mm) based on panel width
- Control via industrial PC with NC system and 3D visual interface
Exterior
- Stable steel frame with compact footprint
- Integrated dust extraction system (2 x Ø150 mm ports)
- Enclosed design with safety doors and operator protection
- Automatic tool calibration with software-controlled operation
Operation and control
- Industrial computer with professional NC system
- 3D graphical interface and door library on screen
- Automatic tool setting and thickness detection
- Real-time order overview, status updates, and editable designs
- Intuitive display with error monitoring and process control
News and Updates
- New user interface with simplified control
- Integrated 3D editing for slots and grooves
- Faster tool change with 6-position magazine
- Improved beam movement with 3-stage control
NCB2808 M
Selected Standard Equipment and Features:
- Working area: 250–2800 mm (X), 0–160 mm (Y), 0–60 mm (Z)
- Automatic thickness detection and tool adjustment
- Cross beam with 3-stage cylinder movement (up to 160 mm)
- Main spindles: 3 total
- 7.5 kW vertical spindle
- 6 kW horizontal spindle
- 3.5 kW horizontal spindle
- Max. speed: 18,000 RPM
- Drilling depth: up to 60 mm
- 6-position inline tool changer for efficient switching
- Dual vertical and horizontal tool setting stations
- Advanced NC system with 3D editing and door model library
- Worktable: 2,660 × 420 mm, height 980 mm
- Max. travelling speed: 70 / 20 / 20 m/min (X / Y / Z)
- CE-certified light curtain and emergency stop
- Dual Ø150 mm dust extraction ports
- 15″ touchscreen with industrial PC interface
- Ready for network connection and smart production
- Compact design: 5350 × 2000 × 2000 mm
- Total power: 16.5 kW
- Net weight: 1600 kg
Price from: 39.027€
Contact for quote
FAQ – NCB2808 M, Multi-functional CNC
What materials can the NCB2808M process?
The NCB2808M works with a wide range of wood-based materials such as MDF, plywood, chipboard, and solid wood, as well as some composite and laminated boards. Its automatic thickness detection system ensures optimal settings for each material type and thickness.
Is operation simple?
Yes.
The machine is equipped with an industrial PC and intuitive NC control system featuring a 3D visual interfaceand an integrated door model library. Operators can easily edit designs, monitor production, and manage tool changes directly from the touchscreen — making the process fast and user-friendly even for new operators.
What equipment is included as standard?
- Automatic material thickness detection and adjustment
- Three main spindles (7.5 kW vertical, 6 kW + 3.5 kW horizontal)
- 6-position inline tool changer for fast tool switching
- Dual tool setters for vertical and horizontal calibration
- Cross beam with 3-stage movement (0–160 mm)
- Industrial NC system with 3D graphical interface
- Integrated dust extraction ports (Ø150 mm × 2)
- CE-certified safety curtain and emergency stop system
- Stable steel frame with compact design
Are there safety features?
Yes.
Fully enclosed design with safety doors
Light curtain and emergency stop buttons
Automatic error monitoring through the NC system
Software-controlled tool calibration to avoid incorrect setup
Stable, vibration-free steel construction for accurate machining
How is the machine operated in practice?
In daily use:
All operations, from milling to drilling, are displayed in 3D on the interface for full visibility.
The operator selects a design or program via the 15″ touchscreen control panel.
The machine automatically detects the material thickness and adjusts the tools accordingly.
The cross beam positions itself in one of three stages depending on the panel size.
The machining cycle begins — with automatic tool changes and real-time process control.
Which companies are the target group?
The NCB2808M is designed for door and furniture manufacturers, carpentry workshops, and joineries that require fast setup, high accuracy, and reliable multi-operation machining.
