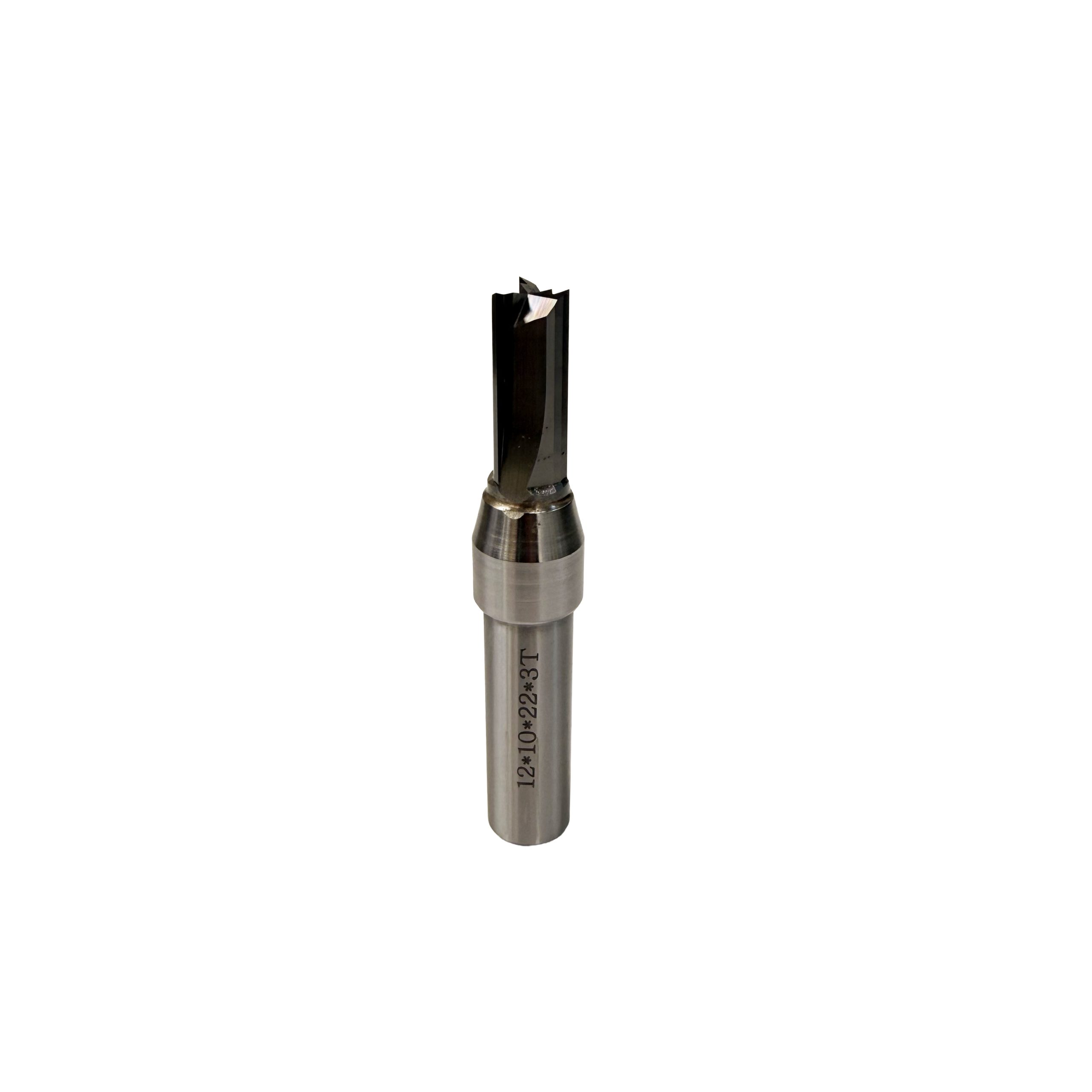

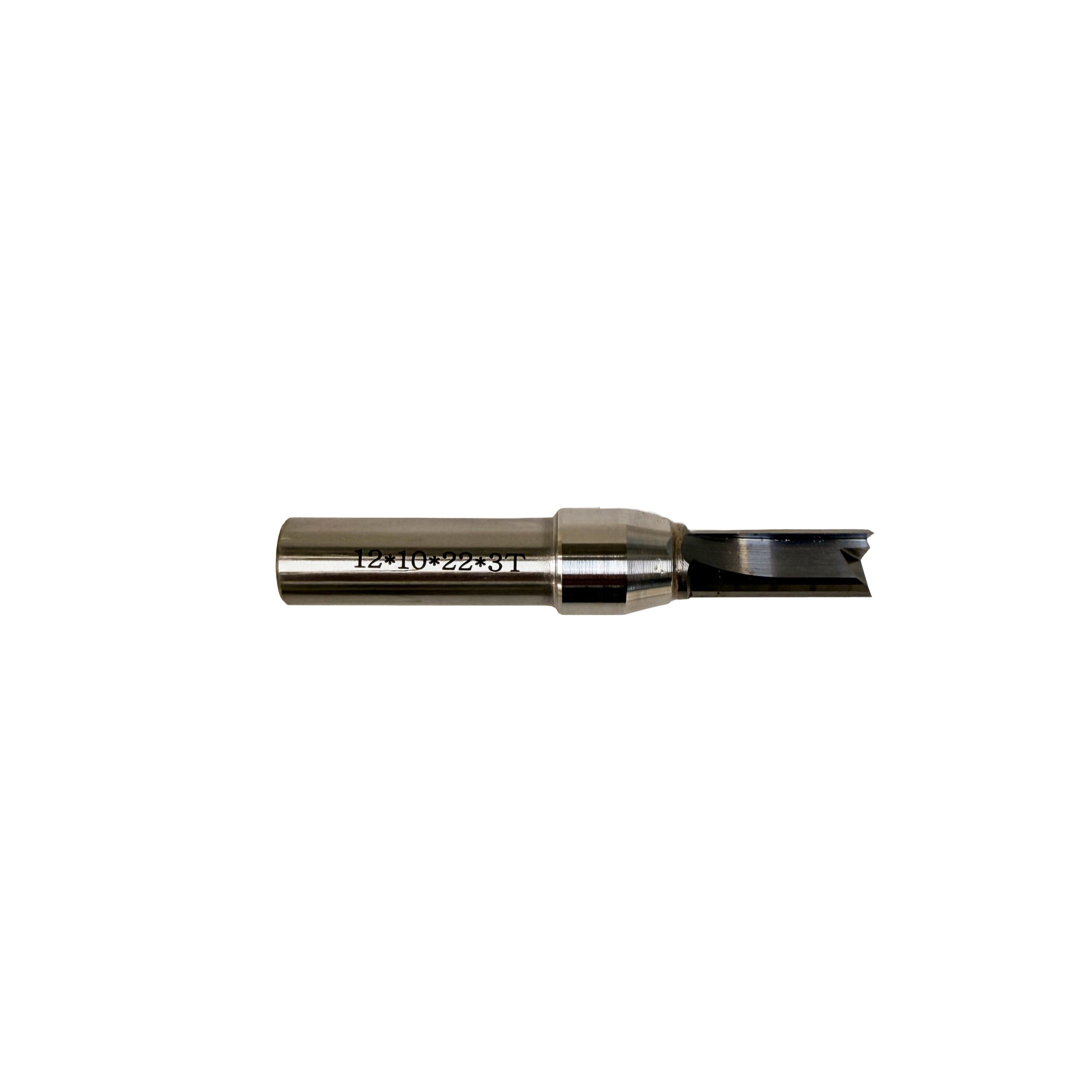

Carbide Router Bit – TCT Straight Bit (S12×D10×H22×3Z)
From:
From: 29,00 €
Carbide Router Bit – TCT Straight Bit (S12×D10×H22×3Z)
A heavy-duty straight router bit designed for deeper grooves and higher material removal in CNC machining.
Description
Key Features
Dimensions: Ø10 mm cutting diameter, 22 mm cutting length
Shank size: Ø12 mm cylindrical shank
Flutes: 3 cutting edges for efficient chip evacuation
Material compatibility: MDF, plywood, particle board and solid wood
Stable cutting performance during heavy routing operations
Technical Parameters
| Parameter | Value |
| Product type | Straight Router Bit |
| Diameter | Ø10 mm |
| Cutting length | 22 mm |
| Shank diameter | 12 mm |
| Flutes | 3 |
| Material | TCT |
| Application | Deep routing and slotting |
