SBU frame presses

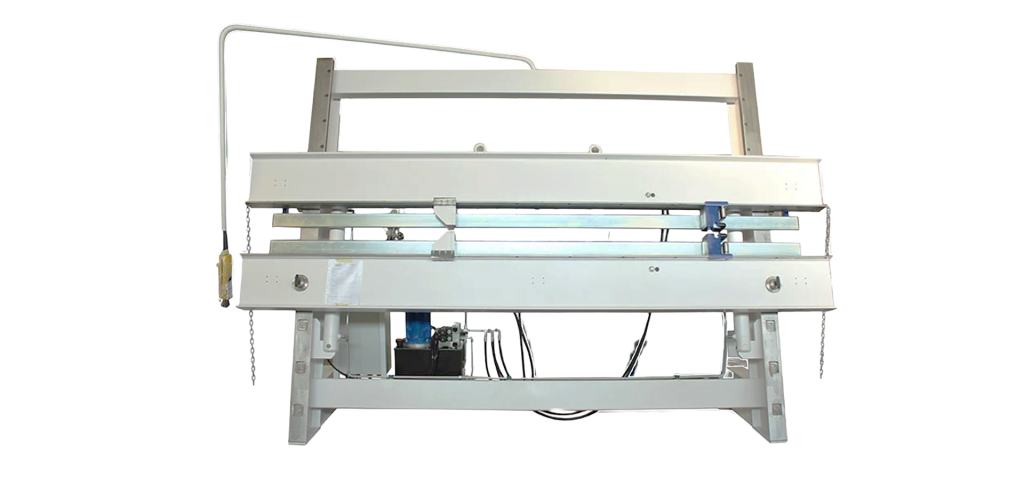

The SBU Frame Press is a robust and flexible machine designed for assembling and gluing frame constructions such as window frames and door frames. It is suitable for both standard and pre-finished workpieces and ensures precise alignment and consistent pressing quality.
The machine is available in three versions depending on the level of automation: manual, automatic, and automatic with size detection. This makes it easy to match the solution to different production needs.
Five advantages of the SBU Frame Press
- Suitable for both standard and pre-finished frames
- Accurate and stable pressing using vertical and horizontal cylinders
- Available in manual and automatic versions
- Flexible setup for different frame sizes
- Strong construction ensures reliable and long-term operation
Exterior
- Heavy-duty frame designed for stable and precise pressing

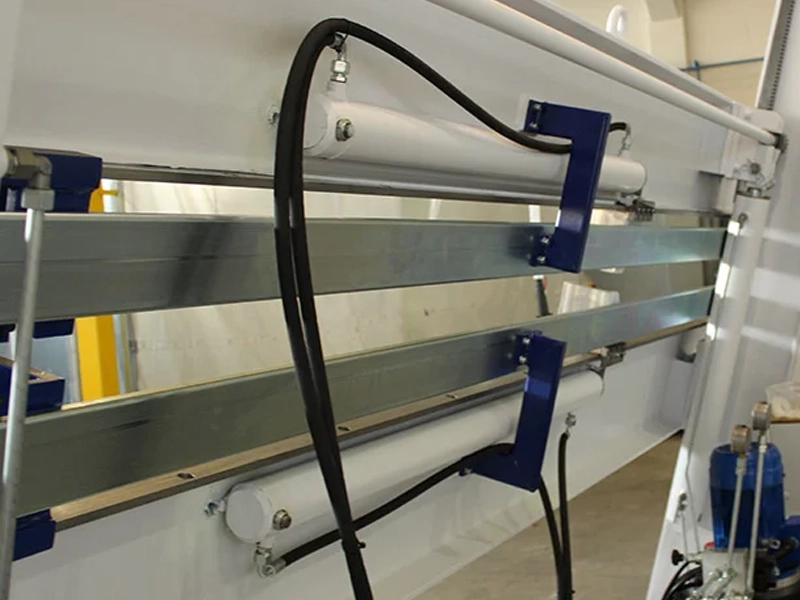

- Vertical and horizontal pistons ensure correct frame alignment

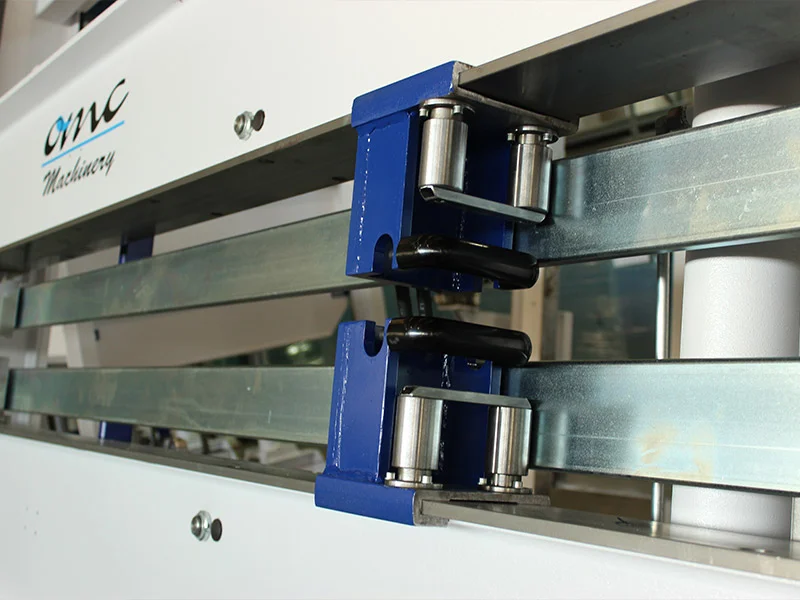

- Adjustable counter brackets for accurate positioning
- Lower beam adjustable in three positions
- Designed for easy handling of different frame sizes
Operation and control
- Available in three versions:
- SBUm – Manual operation with push-button panel
- SBUa – Automatic operation with touchscreen panel
- SBU r.a. – Automatic mode with sensors that detect workpiece size
- Simple operation makes it easy to switch between different frame types and dimensions.
News and updates
- Available with automatic size detection for faster setup
- Improved flexibility for different frame dimensions
- Suitable for both standard and finished surfaces
- Optimized for efficient frame assembly workflows
SBU Frame Presses – Frame Press
Selected Standard Equipment and Features:
- 2 vertical pistons
- 2 horizontal pistons
- 2 adjustable counter brackets (fixed squares)

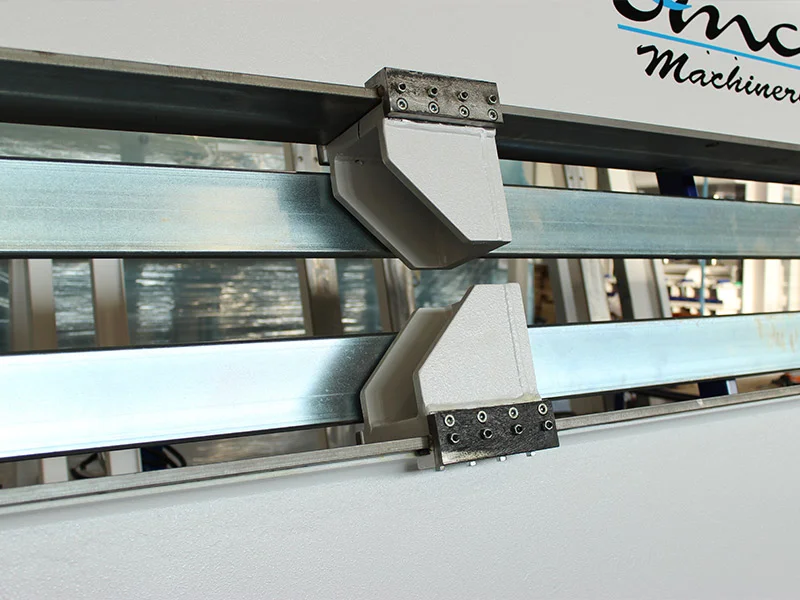

- 2 hydraulic pressing heads
- Adjustable lower beam (3 positions)
- Control system depending on model:

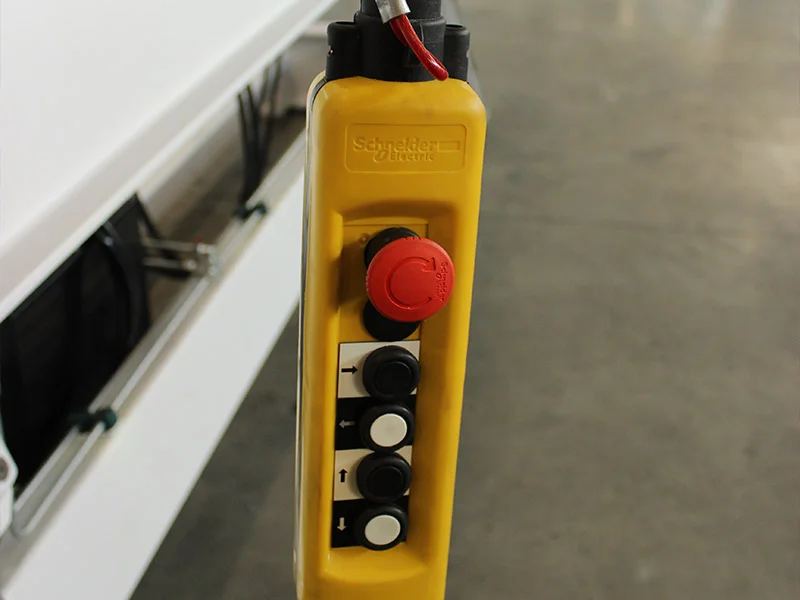

Push-button panel (SBUm)
Touchscreen panel (SBUa)
- Automatic size detection available (SBU r.a.)
- Available sizes
- 3000 × 1700 mm
- 3000 × 2000 mm
- 3500 × 2000 mm
- 3500 × 2500 mm
- 3 years warranty
Price from: -€
FAQ – SBU Frame Presses
What are SBU frame presses used for?
The SBU Frame Press is used for gluing and assembling frame constructions such as window frames, door frames, and other frame types. It can handle both standard and pre-finished workpieces.
Is the operation simple?
Yes. The machine is easy to operate and allows quick setup for different frame sizes. Depending on the model, it is controlled via push buttons or a touchscreen interface.
What equipment comes as standard?
2 vertical pistons
2 horizontal pistons
2 adjustable counter brackets
2 hydraulic pressing heads
Adjustable lower beam (3 positions)
Control system depending on model (manual or touchscreen)
Are there any safety features?
Stable machine construction for safe operation
Controlled pressing via hydraulic system
Simple and secure positioning of workpieces
Reliable operation with minimal risk of misalignment
How is the machine operated in practice?
The operator places the frame parts in the press, aligns them using the adjustable brackets, and activates the pressing cycle. The machine applies pressure from both vertical and horizontal directions to ensure a strong and precise joint.
Which companies are the target group?
Window and door manufacturers, carpentry workshops and furniture producers working with frame assembly and glued constructions.
