NCG-series
The series is developed for the wood and furniture industry and offers a fully automatic and precise solution for nesting, drilling, and labeling of panel materials – whether for small batches or continuous production.
The machines are built with robust components, high-performance vacuum systems, and modern operation via a 15″ touchscreen. They combine drilling, milling, sawing, and labeling in a single pass, ensuring high productivity and minimal material waste.
The two models are carefully selected to cover different needs and production levels:
NCG3021L-LL (Premium) – advanced nesting machine with powerful drilling capacity and HSK spindle. Suitable for intensive production with high demands on precision and flexibility.
NCG3021LE-LL (Standard model) – compact solution with lower power consumption and fast automatic labeling. Perfect for companies with smaller batches and a high degree of variation.
Five advantages of the NCG series
- Fully automated workflow – from loading and labeling to nesting and unloading
- Powerful 12 kW spindles and automatic tool changer
- 2-layer vacuum table for optimal holding and precision
- 15″ touchscreen with SYNTEC control and Windows integration
- Ready for integration with ERP, nesting, and optimization software
Exterior
- Stable welded steel construction for vibration-free operation
- Automatic panel loading with hydraulic lift table (3-ton capacity)
- Rotatable or gantry-mounted Honeywell label printer
- Automatic unloading with waste separation and dust chamber
- Compact machine design with one-sided operation
Operation and control
- User-friendly 15″ color touchscreen
- SYNTEC CNC control with error monitoring and maintenance status
- Automatic calibration, positioning, and workpiece clamping
- Open software platform with CAD/CAM and nesting import
- Preconfigured for connection to network, label printer, and warehouse management
News and updates
- Improved user interface with faster access to programs and job lists
- Increased drilling and milling speed without compromising accuracy
- Ready for integration with label printer, ERP, and automated storage
- CE-certified and equipped with emergency stop, light curtain, and safety guards

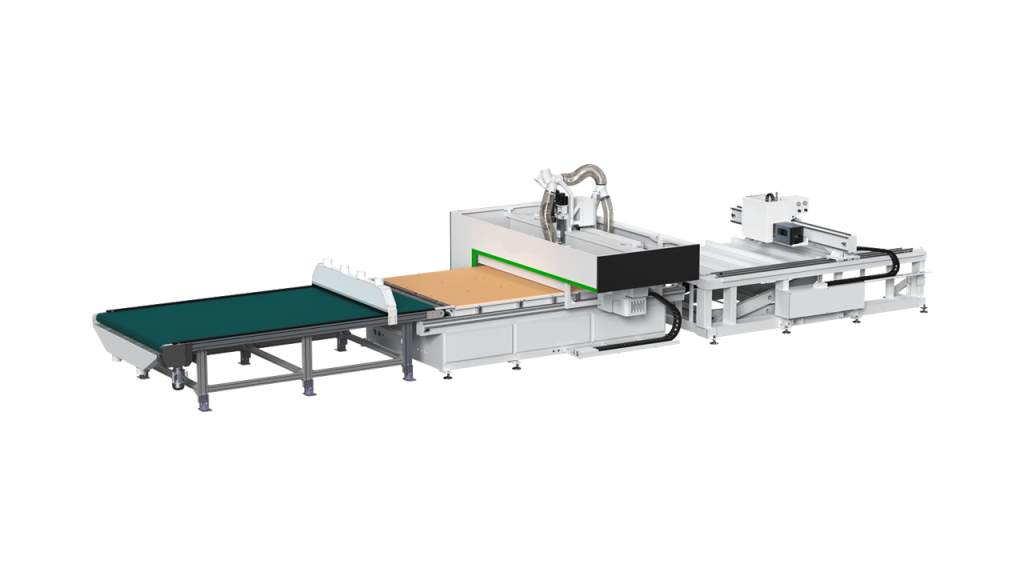

NCG3021LE-LL – CNC Nesting Machine
Premium
Selected standard equipment and features:
- Working area: 3098 × 2103 mm
- Main spindle: 12 kW, 24,000 RPM (HSK-63F)

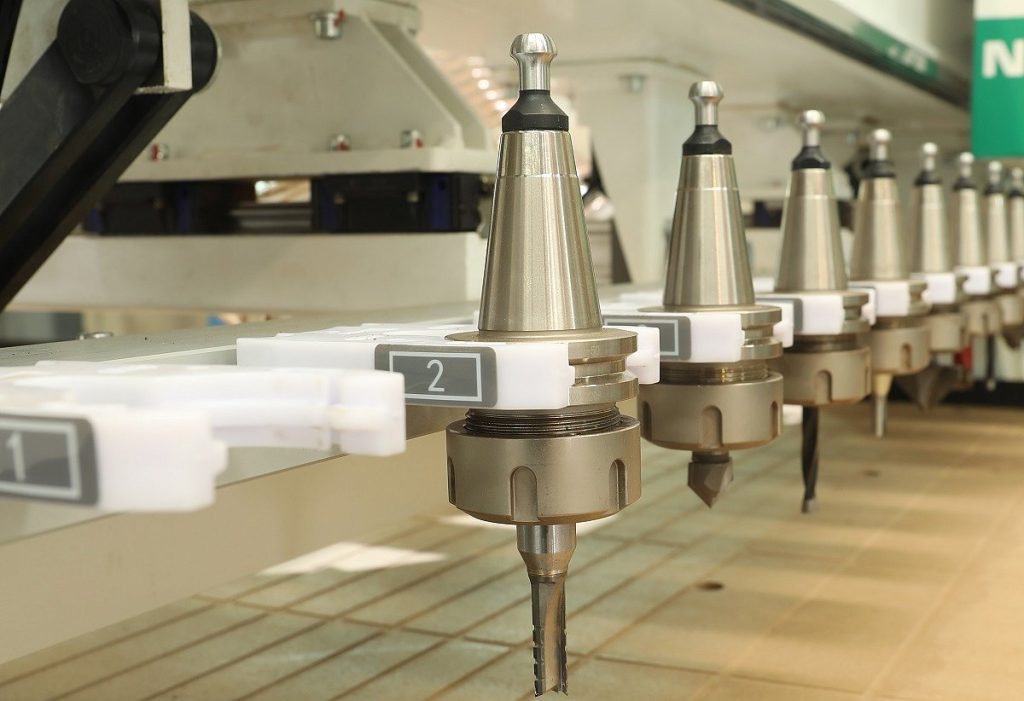

- Automatic tool changer with 12 positions
- Drill block with 21 drilling tools
- 2 × 7.5 kW vacuum pumps (250 m³/h)
- 2-layer vacuum table for maximum holding force
- Automatic loading with hydraulic lift table (3 tons)
- Automatic unloading and waste handling
- Rotatable Honeywell label printer mounted on gantry
- Rack & pinion for X/Y axis, ball screw for Z axis
- Max. speed: 70/70/20 m/min (X/Y/Z)
- CE-certified safety system with light curtain and emergency stop
- Split-table design with dust collection and chamber
- 15″ touchscreen with SYNTEC control and optimization software
- Prepared for Industry 4.0 and network integration
- Ready for ERP and production management integration
Price from:
Contact for quote
NCG3021L-LL – CNC Nesting Machine
Standardmodel
Selected standard equipment and features:
- Working area: 3098 × 2103 mm
- Main spindle: 12 kW, 24,000 RPM (ISO30/ER32)
- Automatic tool changer with 12 positions
- Drill block with 10 drilling tools
- 2 × 7.5 kW vacuum pumps (250 m³/h)
- 2-layer vacuum table for optimal holding
- Automatic loading with 4 suction cups and lift table (3 tons)
- Automatic unloading with LED lighting and waste collection
- Gantry-mounted Honeywell label printer
- Rack & pinion for X/Y axis, ball screw for Z axis
- Max. speed: 70/70/20 m/min (X/Y/Z)
- CE-certified safety with light barrier and emergency stop
- Split vacuum table with dust chamber and automatic lubrication
- 15″ touchscreen with SYNTEC control and Windows PC
- Prepared for Industry 4.0 and nesting software
- Ready for ERP integration and label handling
Price from:
Contact for quote
FAQ – NCG-series, CNC Nesting Machine
What is the difference between the NCG3021L-LL and the NCG3021LE-LL?
The two models differ primarily in drilling capacity, spindle interface, machine size and performance:
NCG3021L-LL:
Length 13,200 mm, weight 6,000 kg, power consumption 42.27 kW
Equipped with 21-bit drill block and HSK-63F spindle
High drilling capacity and more robust construction – suitable for intensive industrial use
NCG3021LE-LL:
Length 12,300 mm, weight 5,500 kg, power consumption 37 kW
Equipped with 10-bit drill block and ISO30/ER32 spindle
Compact model for smaller series and flexible production with lower energy consumption
Which materials can the machines process?
The NCG series is designed for automatic processing of furniture and panel materials such as:
- Particleboard
- MDF
- Veneer panels
- Lacquered or laminated surfaces
- Compact laminate (with correct tool and program selection)
The machines handle panels up to 3100 × 2100 mm and a thickness of up to 50 mm.
Is operation simple?
Yes. Both models come with:
- 15” color touchscreen
- SYNTEC control with user-friendly interface
- Real-time display of operation, errors and maintenance
- Automatic start-up, positioning and safety checks
- Open software platform with import of nesting, CAD and CAM files
What equipment is included as standard?
Common standard equipment for both models:
- 12 kW main spindle (24,000 rpm)
- Automatic tool changer with 12 positions
- 2 × 7.5 kW vacuum pumps (250 m³/h)
- 2-layer vacuum table with split zones
- Automatic loading and unloading
- Honeywell label printer
- Waste collection and dust chamber
- CE-godkendt sikkerhedssystem med lysgitter
NCG3021L-LL also features:
- 21-bit drill unit and HSK-63F spindle
- 21-bit drill unit and HSK-63F spindle
Are there safety features?
Yes. Both models are CE certified and equipped with:
- Enclosed design with access protection and ergonomic control panel
- Light curtain and emergency stop
- Error indication and monitoring via screen
- Automatic lubrication and maintenance reminders
How is the machine operated in practice?
The operator controls the entire process directly via the touchscreen:
- Select workpiece type or import nesting file
- Start the cycle with auto-loading and marking
- The machine performs drilling, milling and extraction automatically
- Operation and error status are continuously displayed on the screen
The machine requires minimal manual handling during operation.
Which companies are the target group?
The NCG series is targeted at:
- Furniture and interior production
- Kitchen and bathroom industry
- Joinery and automated workshops
- Manufacturers with a need for flexible and efficient sheet metal processing The machines are suitable for both series production and batch-size-one.
