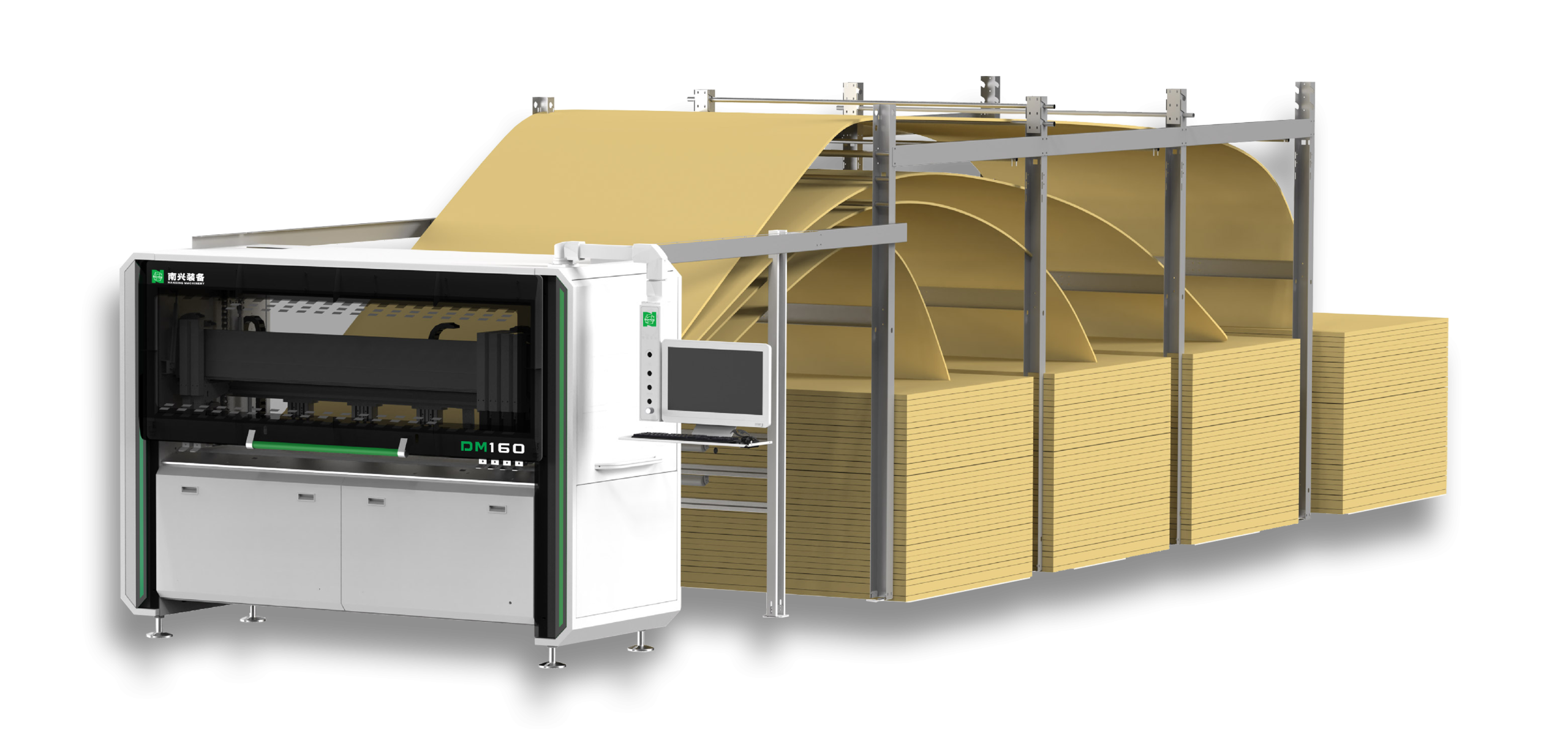

NKP16D(DM160)
NKP16D from NichoMachines is developed for intensive cardboard processing and packaging production. The machine is designed to run under 24-hour operation, seven days a week, combining high speed, intelligent material handling, and robust construction.
With four material containers, AI optimization, and advanced cutting solutions, the NKP16D delivers maximum utilization of corrugated cardboard and consistent production – whether for single items or large series.
Five advantages of the NKP16D
- Four separate material containers – for parallel production
- Durable Japanese blades and rollers – long service life
- AI control optimizes the use of large and remaining paper rolls
- Ready for high-volume production with low downtime
- Intuitive operation with integrated control units
Exterior
- Durable cutting tools with long service life
- Specially designed rollers that resist wear and damage
- Optimized layout with multiple material containers for efficient material flow
- Suitable for both small and large productions
- Compact design for easy integration into existing packaging lines
Operation and control
- Three control systems – optimizing both custom and series production
- Automatic switching between production formats
- User-friendly interface and logical operation
- Intelligent cardboard management maximizes material usage
- Ready for integration with ERP and warehouse management systems
News and Updates
- New AI optimization reduces waste and saves materials
- Improved cutting system with long lifespan
- Upgraded design focusing on efficient operation and easy maintenance
- CE-certified and ready for industrial setup
NKP16D (DM160)
Selected Standard Equipment and Features:
- High-performance carton cutter for intensive 24/7 production
- Suitable for heavy loads and large batch sizes
- Cutting speed: 3–5 boxes/min
- Number of material containers: 4 pcs
- Material width: up to 1500 mm
- Cutting length: from 110 mm and up
- Box height: 18–1600 mm
- Cardboard thickness: 2.5 – 6.5 mm corrugated cardboard
- Cardboard width: 110–1600 mm
- Max. stacking height: 1300 mm (incl. 120 mm pallet)
- Equipped with specially developed cutting blades for extra durability
- High-quality cutting rollers – imported Japanese wear-resistant material
- 4 automatic paper magazines with AI-optimized material usage
- System intelligently recognizes and utilizes leftover paper rolls
- 3 separate control systems ensure flexible and precise production
- Easily switch between piece production (3–5 pcs/min) and mass production (5–8 pcs/min)
- Machine size: 9,000 × 2,330 × 2,350 mm
- Stable and precision-engineered steel construction
Price from:
Contact for quote
FAQ – Cobot-series
What is the difference between the three cobot models?
The three models differ primarily in payload, reach and weight:
- Cobot 20 kg – powerful model for heavy workpieces and palletizing in high-capacity environments
- Cobot 10 kg – versatile model for medium-sized tasks and flexible automation
- Cobot 5 kg – compact and lightweight model for pick & place and small assembly tasks
Are the cobots easy to install and use?
Yes. All models are delivered plug & play and are controlled via an intuitive control pad with drag learning and a graphical user interface. The user can drag the robot by hand and program without coding.
Does the installation require special equipment?
No, the robot can be mounted directly on the floor, wall or ceiling. All necessary equipment is included, and compact dimensions make integration easy in both new and existing lines.
How is cobot safety?
All models have:
- Built-in torque sensors in all axes
- Adjustable drag mode and collision detection Complies with EN ISO 13849-1 PLd Cat.3 & EN ISO 10218-1 IP54 protection against dust and moisture
Are there safety features?
Yes. The machines are CE approved and equipped with:
- Light curtains and emergency stop
- Automatic calibration and adjustment
- Enclosed cabin with operator safety in focus
- Fault and system monitoring via touchscreen
How is the machine operated in practice?
The operator controls the entire drilling and milling process via the touchscreen:
- Import workpiece file or select program manually
- Place the plate and start automatic cycle
- Adjust drilling and milling parameters as needed
- Monitor status, errors and operation in real time
Which companies are the target group?
The NCB series is aimed at:
- Industrial companies with a need for flexible and precise drilling in many variants
- Furniture manufacturers
- Carpentry and kitchen manufacturers
- Interior design companies
