Titanpress TX Frame Press

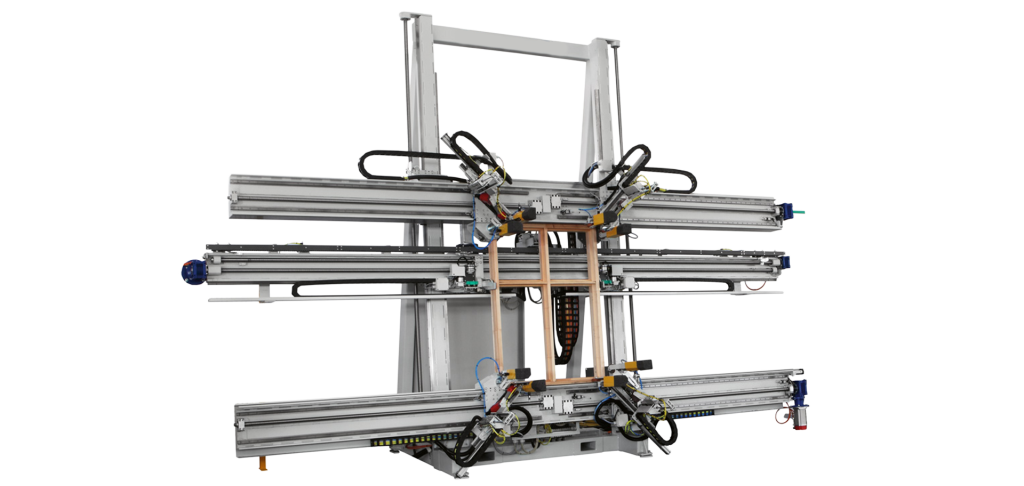

The TITANPRESS-TX is a CNC-controlled frame assembly press designed for high-precision assembly of window frames, doors, shutters, and complex frame constructions. The machine automatically positions itself according to frame dimensions, reducing setup time and eliminating manual pre-assembly in most production scenarios.
With brushless motor-driven axes, automatic centering, and programmable assembly cycles, the TITANPRESS-TX ensures consistent results across a wide range of sizes and configurations. The central beam allows assembly of horizontal elements and mullions, making the machine ideal for complex frame constructions.
Five advantages of the TITANPRESS-TX Frame Press
- Fully CNC-controlled automatic frame positioning
- Self-centering system for fast setup and high accuracy
- Handles complex frames with mullions and transoms
- Brushless motor-driven axes for precise movement
- Ready for integration into automated production lines
Exterior
- Heavy-duty vertical structure with slight tilt for ergonomic loading
- Two horizontal beams with automatic self-centering movement

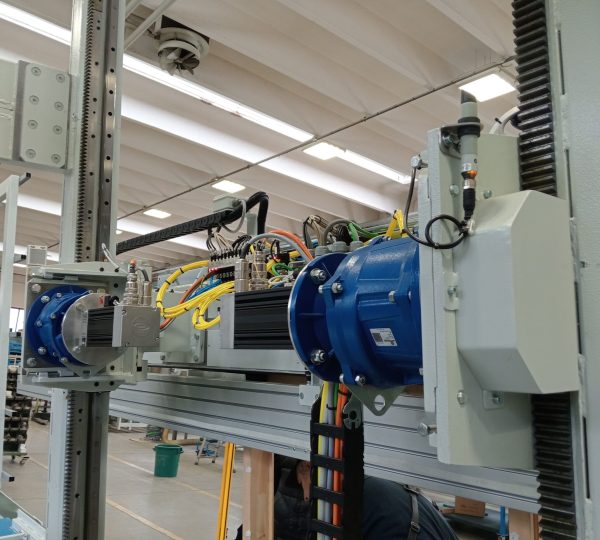

- Upper beam moving vertically via brushless motors
- Fixed lower beam for stable positioning
- Central beam for pressing horizontal transoms and mullions

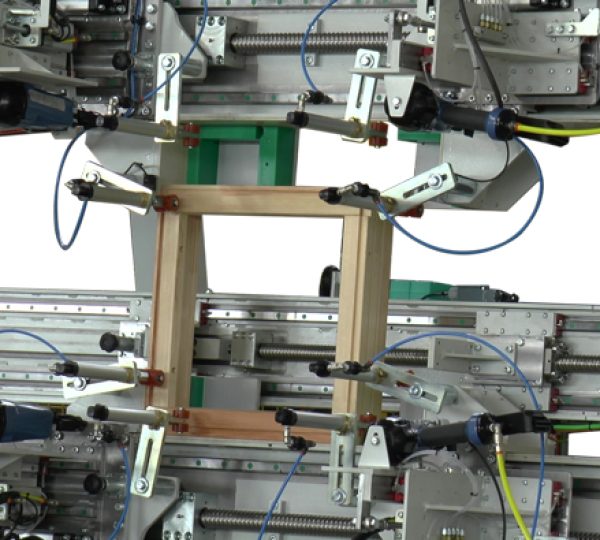

- Pneumatic cylinders in each corner for secure positioning
Operation and control
- Fully CNC-controlled automatic positioning
- PC-based control system with HMI interface
- Production data import via .txt or .csv files
- Automatic multi-step assembly cycles
- Remote diagnostics and software updates
- Optional integration with production database
News and updates
- Automatic assembly without manual pre-assembly
- Improved positioning using brushless motor control
- Optional automatic stapling or nailing system
- Prepared for full automation and robotic handling
TITANPRESS-TX – Frame Press
Selected Standard Equipment and Features:
- CNC controlled frame assembly press
- Automatic self-centering beams
- Brushless motor-driven positioning system
- Automatic vertical positioning of upper beam
- Central pressing beam for transoms and mullions
- Pneumatic clamping cylinders in all corners
- PC-based control with operator interface
- Remote service and diagnostics capability
- CE safety fencing and light curtain

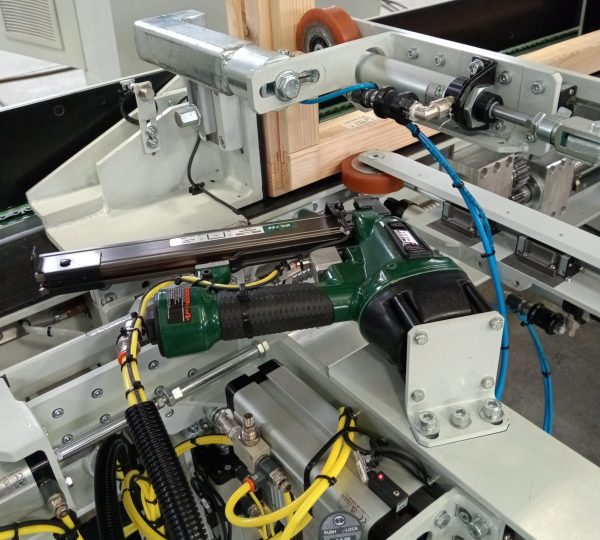

- Automatic staplers or nail guns (4 corners)
- Automatic unloading conveyor system

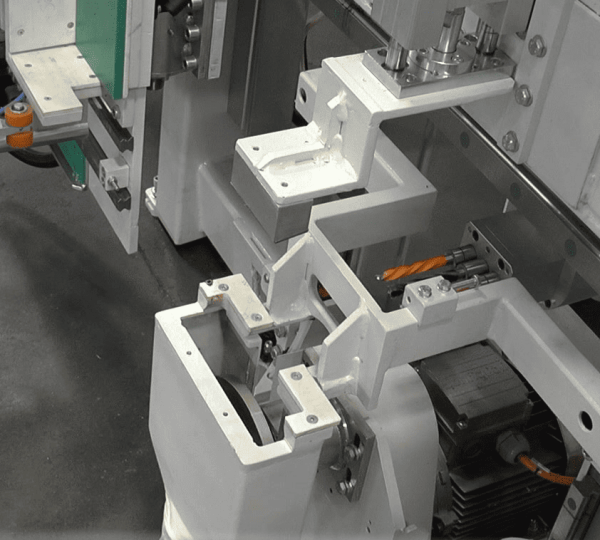

- Automatic drilling and milling for handles
- Automatic screwing or stapling units
- Extended height version up to 3500 mm
- Integration with gluing and gasket insertion lines
- Production data management software
- Frame height: 500 – 3000 mm (optional 3500 mm)
- Frame width: 500 – 3500 mm
- Vertical structure height: approx. 4500 mm
- Brushless motor-driven axes
- Automatic self-centering system
- CNC controlled positioning
- CE certified machine
- 3 years warranty
Price from: -€
FAQ – TITANPRESS-TX Frame Press
What are TITANPRESS-TX frame presses used for?
The TITANPRESS-TX is a CNC-controlled frame assembly press designed for window frames, doors, shutters, and similar constructions. It allows precise assembly of frames with mullions, transoms, pins, dowels, or Plattex connections.
Is the operation simple?
Yes. The machine automatically positions itself based on the programmed frame size.
The operator loads the elements, and the CNC system handles:
- Automatic positioning
- Auto-centering of beams
- Vertical adjustment of the press
- Frame locking and pressing
- Automatic assembly sequence
Production data can also be imported via .txt or .csv files.
What equipment comes as standard?
- CNC-controlled TITANPRESS-TX frame press
- Automatic self-centering horizontal beams
- Brushless motor-driven positioning system
- Vertical moving upper beam (Z-axis)
- Central pressing beam for mullions/transoms
- Pneumatic frame holding cylinders in each corner
- PC-based control system with HMI interface
- Remote service and diagnostics capability
- CE safety fencing and light curtain
Are there any safety features?
- Full perimeter safety fencing
- Light curtain protecting the front working area
- Controlled pneumatic locking of workpieces
- CE certified machine design
- Error monitoring and diagnostic system
- Remote service for fast troubleshooting
How is the machine operated in practice?
- The operator loads frame elements into the press.
- The CNC system automatically positions all beams and references.
- The machine clamps the components and performs the assembly cycle.
- Optional stapling or nailing locks the frame.
- The finished frame is automatically unloaded (optional conveyor).
Which companies are the target group?
Window and door manufacturers, industrial frame producers, and automated production lines requiring high flexibility, CNC positioning, and batch-size-one frame assembly.
