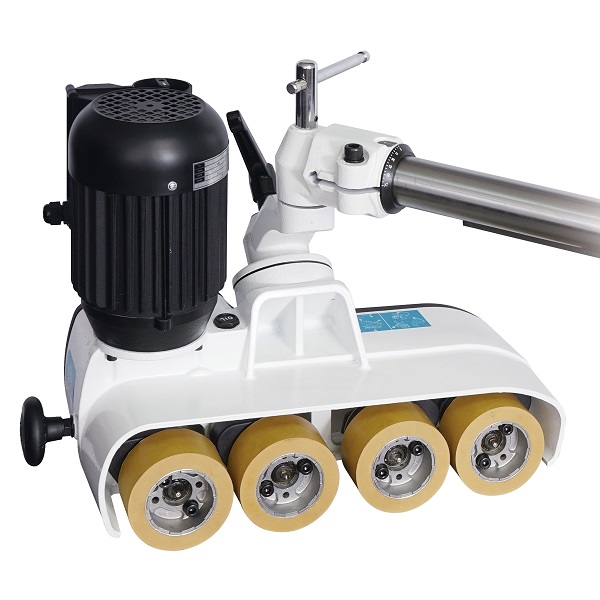

EZ408 Cabinet Feeder – Medium Duty Model
Versatile power feeder designed for cabinetmaking and general woodworking applications. Provides consistent feed speed, reliable grip, and flexible mounting for various woodworking machines.
Description
Key Features
-
4 precision rollers: Ø100 × 50 mm, non-marking grip, spring-loaded for constant pressure
-
Roller suspension: Up to 15 mm (3/5″) for consistent feeding
-
Adjustable speed range: Multiple speed settings via interchangeable gear set
-
Forward & reverse feed: Simple switch for directional change
-
Durability: Built for medium-duty applications in woodworking shops
Technical Parameters
Parameter | Value |
---|---|
Motor power | 375 W (1/2 HP), 1 or 3 phase; Forward/Reverse |
Speed range (50 Hz) | 3 PH: 2.9/4.5/5.8/7.5/9/11.5/15/23 m/min; 1 PH: 2.9/4.5/7.5/11.5 m/min |
Speed range (60 Hz) | 3 PH: 9.5/15/19/25/30/38/50/76 FPM; 1 PH: 9.5/15/25/38 FPM |
Rollers | Ø100 × 50 mm × 4 pcs (Ø4″ × 2″) |
Roller suspension | 15 mm (3/5″) |
Net weight | 28 + 25 kg (61.8 + 55 lb) |
Gross weight | 30.5 + 27 kg (67.3 + 59 lb) |
Packing size (Body) | 585 × 500 × 388 mm (23″ × 19-11/16″ × 15-1/4″) |
Packing size (Stand) | 770 × 230 × 260 mm (30-3/8″ × 9″ × 10-1/4″) |
Container loading (20’) | 140 sets |
Options
-
RO10 Roller – Standard
-
RU10 PU Roller – Optional
