Tooling: Drill bit type A
From:
From: 11,00 €

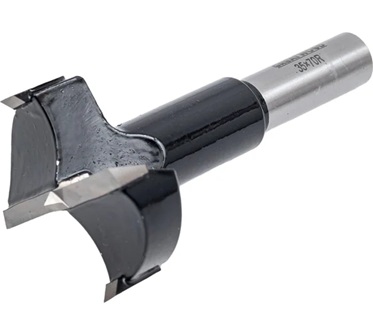

Cup Drill ECO HW 35×70 mm, S10×26 mm, RH – Greatwood TL00000231
High-quality cup-shaped drill bit designed for use on drilling and doweling machines. Ideal for drilling blind holes for furniture hinges and fittings in a variety of wood-based materials.
| Name | 1 Pcs | 10–20 | 20+ |
|---|---|---|---|
| Drill Bit Type A Ø35x70R | 17 € | 14 € | 11 € |
Description
Key Highlights
-
Durable construction: Made from high-strength tool steel to withstand heavy loads
-
Anti-friction coating: Reduces resin and chip adhesion for longer tool life
-
Laser-sharpened brazing: Ensures clean, precise drilling with minimal tear-out
-
K5++ fine-grain alloy: Provides superior wear resistance and cutting performance
-
Applications: Drilling hinge holes, eccentric fittings, tabletop joints, and support mounts in MDF, chipboard, and solid wood
-
Right-hand rotation for standard drilling and doweling machines
Technical Parameters
| Parameter | Value |
|---|---|
| Product type | Cup Drill Bit (ECO HW) |
| Brand | Greatwood |
| Product code | TL00000231 / 20699667 |
| Type | Cup-shaped drill bit |
| Diameter | 35 mm |
| Total length | 70 mm |
| Shank type | Cylindrical with chamfer |
| Shank diameter | 10 mm |
| Shank length | 26 mm |
| Rotation direction | Right-hand (RH) |
| Material | HW (Carbide-tipped tool steel) |
