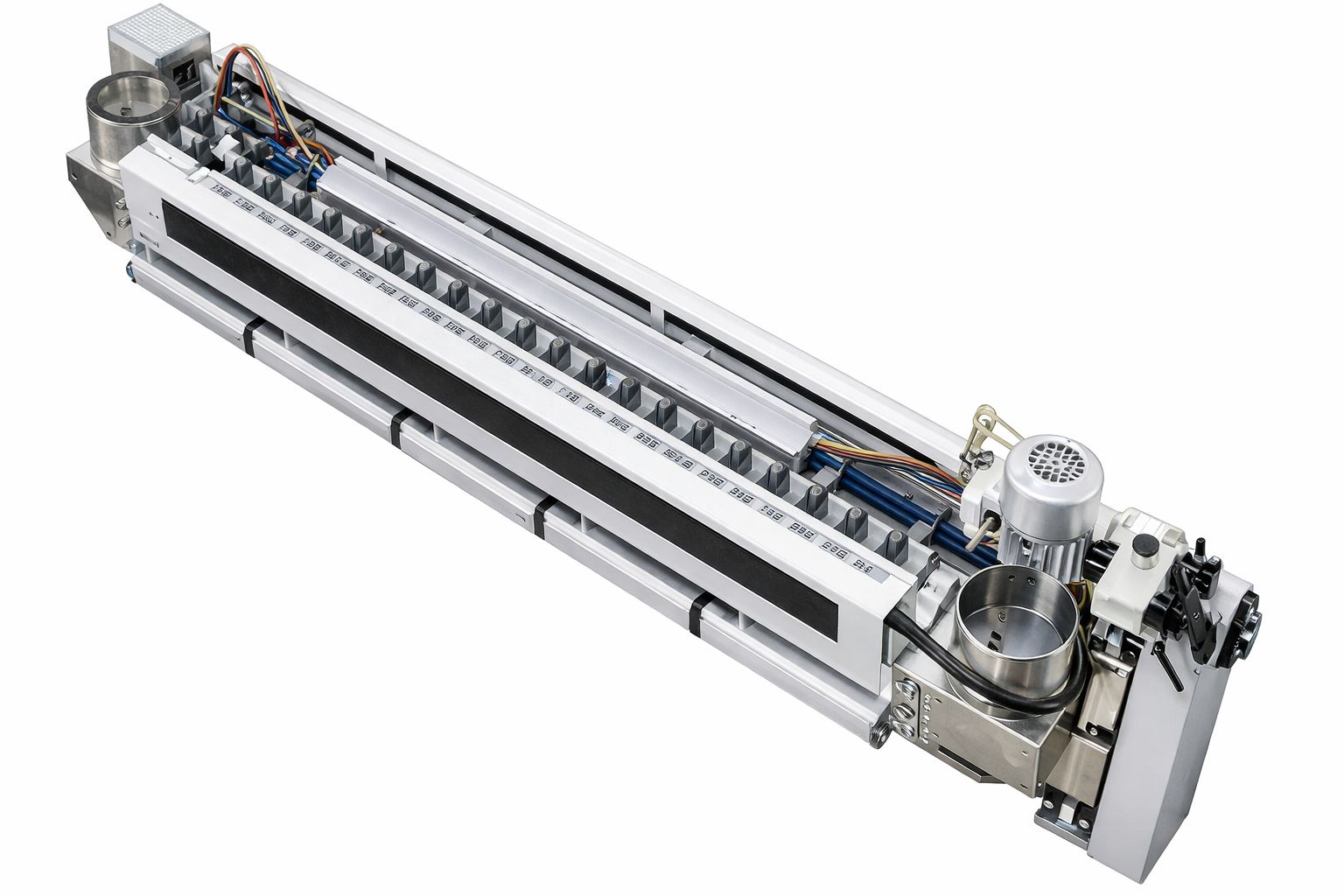

Dust Cleaning Machine – JMTBSA-F-H-3D-1400
From:
From: 20.000,00 €
Industrial dust cleaning machine designed for automatic removal of dust and debris from panel surfaces. The system uses polyamide brush belts combined with servo-controlled height adjustment to ensure consistent cleaning across varying panel thicknesses.
Suitable for furniture production lines, CNC feeding systems, sanding lines, and laminating preparation.
Description
Key Highlights
- Automatic servo lifting system with height measurement
- Polyamide brush belt cleaning for gentle but effective dust removal
- Wide working range from 60 mm to 1400 mm panels
- Adjustable thickness handling from 1–100 mm
- Integrated dust extraction ports for industrial suction systems
- Continuous conveyor cleaning for production lines
- Industrial components from Siemens, SKF, Festo, Keyence
Technical Parameters
| Parameter | Value |
|---|---|
| Model | JMTBSA-F-H-3D-1400 |
| Machine type | Dust Cleaning Machine |
| Brush material | Polyamide brush |
| Maximum working width | 1400 mm |
| Minimum working width | 60 mm |
| Maximum length | Unlimited |
| Minimum length | 280 mm |
| Working thickness | 1 – 100 mm |
| Working height | 900 ± 50 mm |
| Conveying speed | ≤ 25 m/s |
| Lateral brushing speed | 90 m/min |
| Surface temperature | max. 50°C |
| Power | 380V / 50Hz / 1.25 kW |
| Air pressure | 6 – 8 MPa |
| Air consumption | 0.641 m³/min |
| Dust collection | Ø150 mm ×2 + Ø60 mm ×2 |
| Dust air volume | 68.82 m³/min |
| Machine dimensions | 2020 × 450 × 750 mm |
| Net weight | 150 kg |
| Packing dimensions | 2220 × 620 × 950 mm |
| Gross weight | 272 kg |
Servo Lifting System
- Inovance servo control
- Automatic height measurement
- Height measurement module
- Height measurement sensor
- Servo motor and driver
- Touch screen control
- Expansion module
- Yellow electric cabinet
Components
| No | Component | Specifications |
|---|---|---|
| 1 | Drive Motor | 380V 50/60Hz 0.25kw Ratio 1:5 |
| 2 | Brush Belt | 3400 × 405.4 × 17 / 0.12 mm |
| 3 | Transmission Parts | — |
| 4 | Sensor | — |
| 5 | Electrical Parts | — |
| 6 | Cable | — |
| 7 | Terminal Block | — |
| 8 | Power Supply | 6EP3332-3SA00-OAYO |
| 9 | Pneumatic Parts | — |
Applications
- CNC feeding lines
- Panel furniture production
- Laminating preparation
- Sanding line cleaning
- Edge banding feed cleaning
- Conveyor cleaning stations
Usage Recommendation
Connect to central dust extraction system before operation.
Adjust servo height automatically according to panel thickness for optimal cleaning performance.
