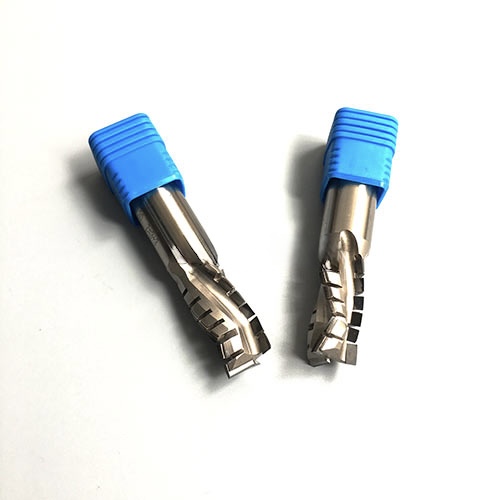

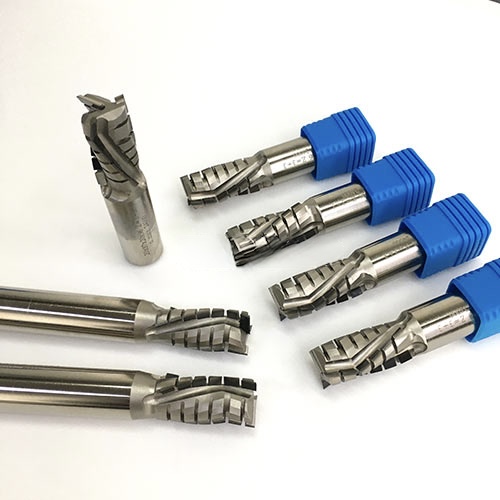

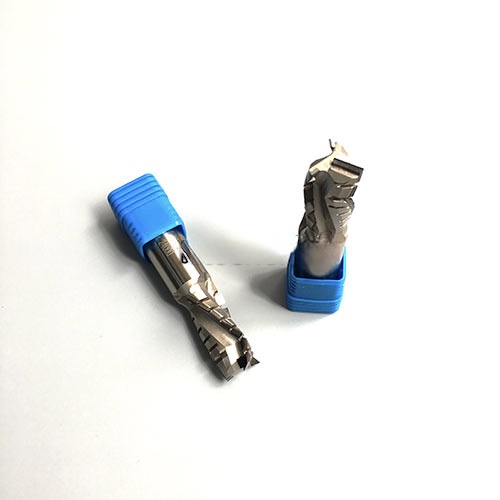

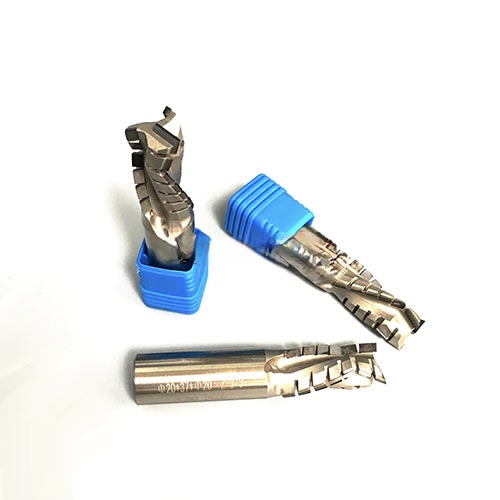

Z=3+3 Cutting Edges – High Feed Rate PCD Spiral Router Tool Bits
Premium PCD (Polycrystalline Diamond) spiral router bits designed for high-speed CNC machining of tough and abrasive materials. Provides ultra-clean cuts, extended tool life, and exceptional feed rates.
Description
Key Highlights
-
Design: 3+3 cutting edges (up/down shear angle) for high feed rate and clean laminated cuts
-
Material: PCD diamond cutting edges on solid carbide body
-
Performance: Up to 900 ipm feed rate, can be re-sharpened ~4 times
-
Durability: 30–50× longer life than solid carbide bits
-
Speed: Operates up to 10× faster than standard carbide router bits
-
Applications: Nesting cuts, woodworking, chipboard, MDF, melamine board, veneer, and solid wood
-
Process: Vacuum brazed for flawless bonding and smooth appearance
Advantages of PCD Router Bits
-
Cutting edge: Premium PCD diamond grades
-
Resharpenable multiple times without losing original profile
-
Extended lifespan: 30–50× longer than carbide tools
-
High productivity: Speed up to 10× faster than carbide bits
-
Clean finish: Up/down shear cutting edges for minimal chipping
-
Wide material compatibility: Ideal for wood and composite boards
Technical Specifications – 3-Flute Diamond Spiral Bits
Item No | CED (mm) | CEL (mm) | SHK (mm) | OVL (mm) | Teeth Z | Teeth Height H |
---|---|---|---|---|---|---|
E010 | 20 | 28 | 20 | 90 | 3+3 | 4 |
E020 | 20 | 37 | 20 | 96 | 3+3 | 4 |
E030 | 20 | 45 | 20 | 105 | 3+3 | 4 |
E040 | 20 | 28 | 25 | 96 | 3+3 | 4 |
E050 | 20 | 37 | 25 | 105 | 3+3 | 4 |
E060 | 20 | 45 | 25 | 105 | 3+3 | 4 |
E070 | 25 | 28 | 25 | 96 | 3+3 | 4 |
E080 | 25 | 37 | 25 | 105 | 3+3 | 4 |
E090 | 25 | 45 | 25 | 113 | 3+3 | 4 |
E100 | 25 | 55 | 25 | 123 | 3+3 | 4 |
